Description

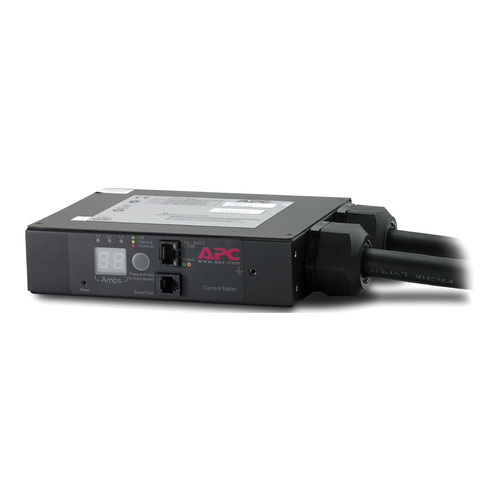

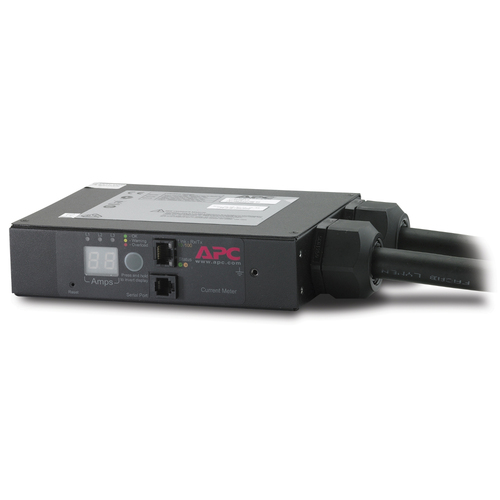

APC In-Line Current Meter, 32A, 230V, IEC309-32A 3-PH, 3P+N+G, Metered, 0U, Three-phase, Black, LED, 1 AC outlet(s)
It is an in-line current meter designed to measure and display the current being drawn by connected equipment. It supports a maximum current of 32A and operates at 400V. The meter features a digital display for real-time monitoring and includes an installation guide.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | AP7175B |
| Our part no. | 270B822 |
| EAN | 0731304331445 |
| Category | Docks, Bags & Racks › Racks & Cabinets |
| Weight | 3.7 kg |
| Design | |
| PDU types | Metered |
| Type | Three-phase |
| Rack capacity | 0U |
| Product colour | Black |
| Display | LED |
| Ports & interfaces | |
| AC outlets quantity | 1 AC outlet(s) |

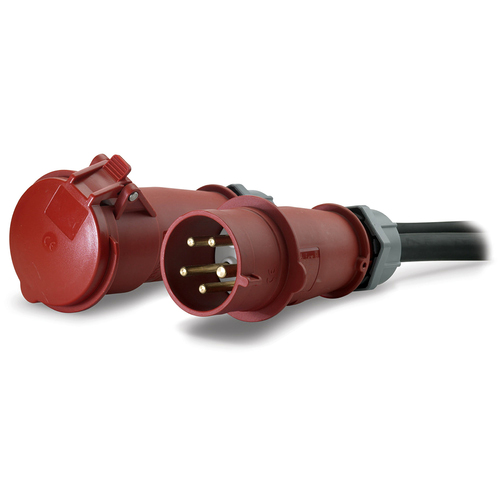

| Input connection type | IEC 60309 32 A 3P + N + E |
| Output connections | IEC 309 32A 3P+N+E |
| Features | |
| Cable length | 0.9 m |
| Management features | |
| Monitoring | Current |
| Power | |
| Nominal input voltage | 400 3 phases |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 230 V |
| Output voltage | 230 V |
| Load capacity | 22080 VA |
| Number of phases | 3 |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | AS/NZS 3548 (C-Tick) class A; C-Tick; CE; GOST; VDE |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Weight & dimensions | |
| Width | 178 mm |
| Depth | 140 mm |
| Height | 44 mm |
| Weight | 2.89 kg |
| Packaging content | |
| Cables included | RS-232 |
| Manual | Yes |
| Packaging data | |
| Package weight | 3.52 kg |
| Package width | 330 mm |
| Package depth | 185 mm |
| Package height | 246 mm |
| Technical details | |
| Sustainable packaging | No |
| Packaging recycled materials | Recycled cardboard |
| SCIP number | 1cdb2fed-a06f-4574-913d-8df8e70936b2 |
| Removable battery | Yes |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Logistics data | |
| Country of origin | India |
| Customs product code (TARIC) | 9030337000 |
| Total carbon footprint (kg of CO2e) | 2909.2623272707 |
