Description

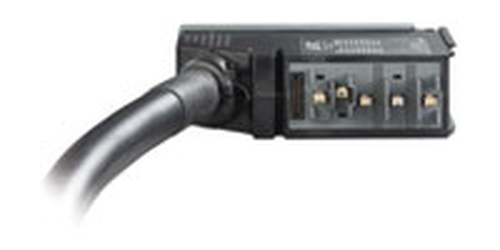

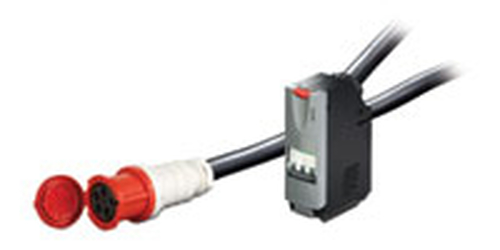

APC IT Power Distribution Module 3 Pole 5 Wire 63A IEC309 1040cm, Metered, Monitored, Black, 1 AC outlet(s), 1 x IEC 309, 10.4 m, Web/SNMP
Factory assembled and tested Power Distribution Modules include circuit breaker, power cord, power connection, and circuit monitoring. Auto-detection of modules by the Modular PDU minimizes installation time.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | PDM3563IEC-1040 |
| Our part no. | 270B940 |
| Category | Cables & Adapters › Other (1220) |
| Weight | 0 kg |
| Design | |
| PDU types | Metered, Monitored |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 1 AC outlet(s) |
| Output connections | 1 x IEC 309 |
| Features | |
| LED indicators | Yes |
| Cable length | 10.4 m |
| Management features | |
| Management platform | Web/SNMP |
| Power | |
| Nominal input voltage | 400 V |
| AC input frequency | 50 Hz |
| Nominal output voltage | 230-400 V |
| Maximum input current per phase | 63 A |
| Maximum total current draw per phase | 63 A |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE,VDE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 30 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4500 m |
| Weight & dimensions | |
| Width | 267 mm |
| Depth | 305 mm |
| Height | 152 mm |
| Weight | 30.9 kg |
| Packaging data | |
| Package weight | 32.7 kg |
| Package width | 508 mm |
| Package depth | 508 mm |
| Package height | 229 mm |
