Description

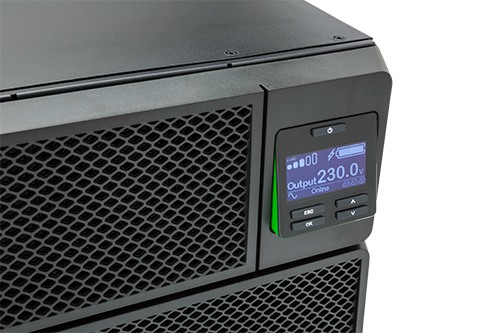

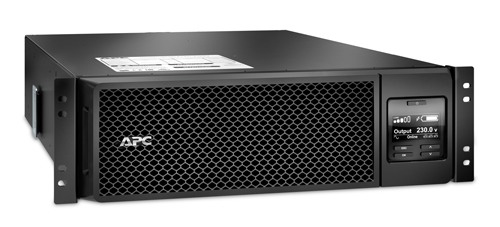

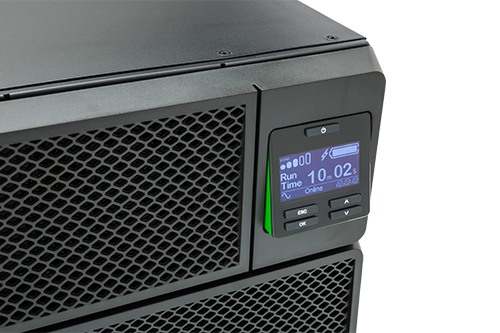

APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit, Marine, Double-conversion (Online), 5 kVA, 4500 W, Pure sine, 160 V, 275 V
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SRT5KRMXLIM |
| Our part no. | 270C592 |
| EAN | 0731304320821 |
| Category | Power & UPS › UPS |
| Weight | 69.5 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 5 kVA |
| Output power | 4500 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 275 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 480 J |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 55 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Temperature voltage compensation | Yes |
| Ports & interfaces | |
| AC outlet types | C13 coupler, C19 coupler, IEC Jumpers |
| Power plug | Terminal |
| AC outlets quantity | 12 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T |
| SmartSlot | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 1 |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 1 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Mini Tower |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, DNV, EAC, RCM, VDE, REACH |
| Packaging content | |
| Quick installation guide | Yes |
| Weight & dimensions | |
| Width | 432 mm |
| Depth | 719 mm |
| Height | 130 mm |
| Weight | 54.4 kg |
| Packaging data | |
| Resource CD | Yes |
| Warranty card | Yes |
| Package width | 610 mm |
| Package depth | 960 mm |
| Package height | 330 mm |
| Package weight | 66.9 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 46266.7 |
