Description

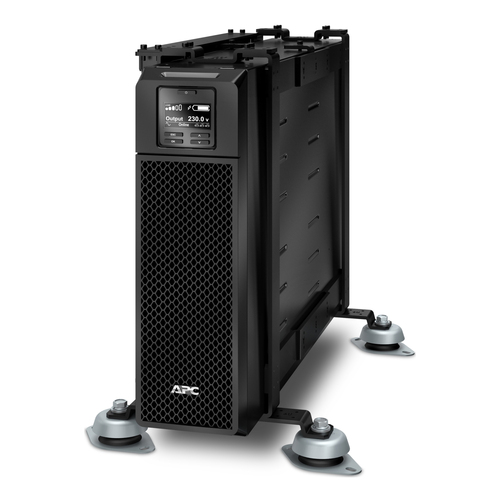

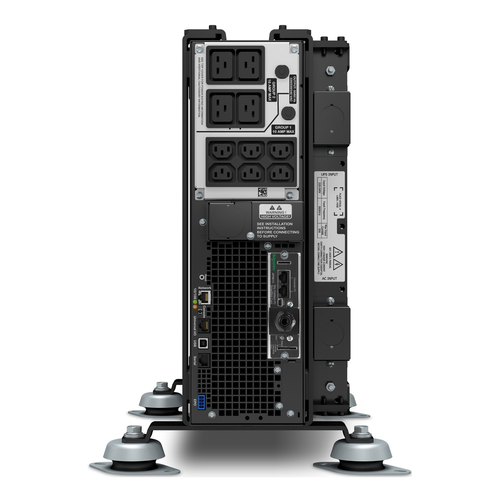

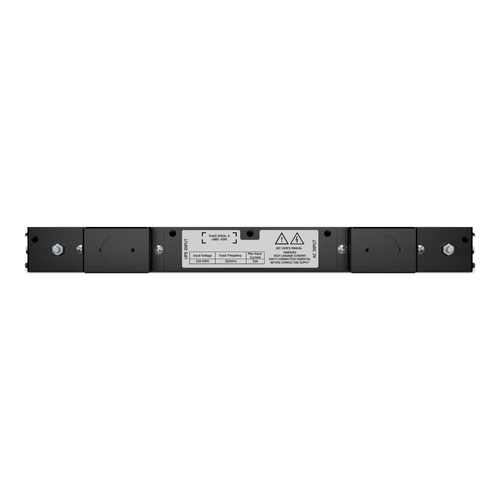

APC 5kVA and 6kVA Marine Filter Rack-Mount, 6 kVA, 100 V, 240 V, 45/65 Hz, 200 V, 240 V
"High availability, ruggedized power protection for shipboard and other transportation applications."
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SRT6RMM |
| Our part no. | 270C613 |
| EAN | 0731304324843 |
| Category | Power & UPS › PDUs |
| Weight | 0 kg |
| Features | |
| Output power capacity | 6 kVA |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Ports & interfaces | |
| AC outlet types | Hardwire |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 1U |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -25 - 75 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Sustainable packaging | No |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | DNV |
| Weight & dimensions | |
| Width | 483 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Weight | 6.73 kg |
| Packaging data | |
| Package width | 559 mm |
| Package depth | 406 mm |
| Package height | 76 mm |
| Package weight | 8.27 kg |
| Logistics data | |
| Customs product code (TARIC) | 8543709099 |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 1634.475049186192 |
| Country of origin | Philippines |
| Other features | |
| Output connection type | hard wire 3-wire (H N + E) for 1 zone(s) |
| Output voltage | 200 V |
| Mounting | front; horizontal |
