Description

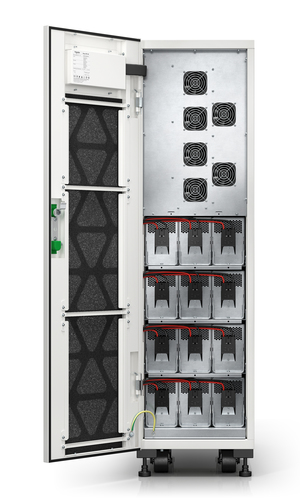

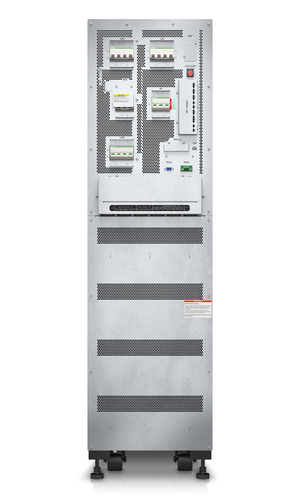

APC Easy 3S, Double-conversion (Online), 20 kVA, 20000 W, Pure sine, 304 V, 477 V
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | E3SUPS20KHB2 |
| Our part no. | 270C811 |
| EAN | 0731304428244 |
| Category | Power & UPS › UPS |
| Weight | 524.5 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 37 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Input power factor | 0.99 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level | 60 dB |
| Ports & interfaces | |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Number of batteries supported | 3 |

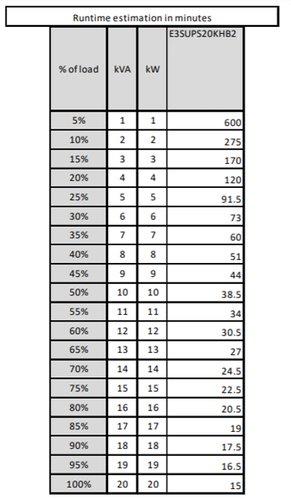

| Typical backup time at full load | 30 min |
| Design | |
| Form factor | Tower |
| Product colour | White |
| Display type | LED |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Packaging content | |
| Management card included | No |
| Quick installation guide | Yes |
| Weight & dimensions | |
| Width | 380 mm |
| Depth | 928 mm |
| Height | 1400 mm |
| Weight | 446 kg |
| Packaging data | |
| Package width | 563 mm |
| Package depth | 1014 mm |
| Package height | 1640 mm |
| Package weight | 494 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Output voltage | 400 V |
