Description
APC Easy 3S, Double-conversion (Online), 15 kVA, 15000 W, Pure sine, 304 V, 477 V

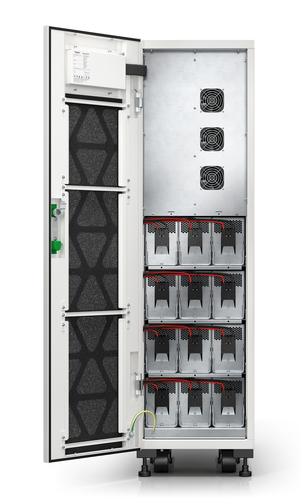

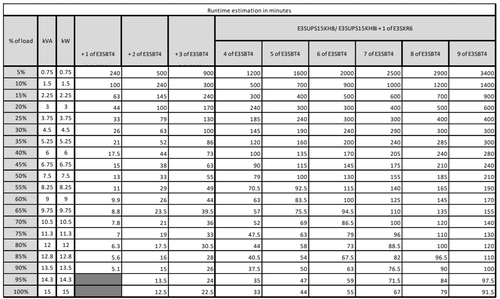

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.
Includes: Dust filter, Installation guide.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | E3SUPS15KHB |
| Our part no. | 270C818 |
| Category | Power & UPS › UPS |
| Weight | 144.7 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 15 kVA |
| Output power | 15000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Maximum current | 28 A |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Efficiency | 94.5% |
| Input power factor | 0.99 |
| ECO mode | Yes |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 60 dB |
| Ports & interfaces | |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 240 V |
| Design | |
| Form factor | Tower |
| Cooling type | Active |
| Product colour | White |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE REACH |
| Packaging content | |
| Management card included | No |
| Weight & dimensions | |
| Width | 380 mm |
| Depth | 928 mm |
| Height | 1400 mm |
| Weight | 112 kg |
| Packaging data | |
| Package width | 563 mm |
| Package depth | 1014 mm |
| Package height | 1640 mm |
| Package weight | 145 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Nominal output voltage | 400 V |
| Nominal input voltage | 400 V |
