Description

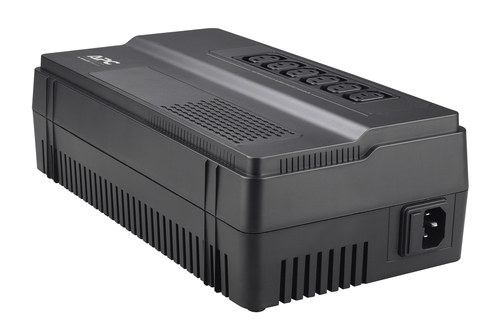

APC BV500I, Line-Interactive, 0.5 kVA, 300 W, Sine, 170 V, 280 V

Automatic Voltage Regulation (AVR) Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.

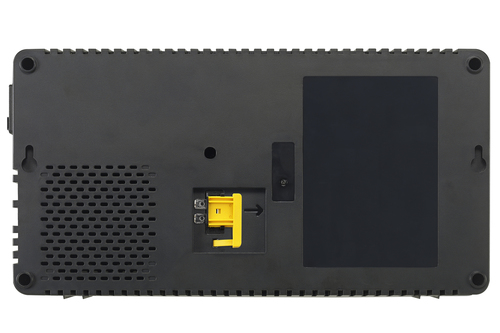

Wall-mount holes Allow flexibility for setup in tight locations and mounting on wall or other surfaces.

Battery and surge protected outlets Back up and protect your hardware and data during power outages, surges and spikes.

Battery backup and surge protection Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.

Advanced Safety Features Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.

Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.

Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance.

Cold-start capable Provides temporary battery power when the utility power is out.

Boost Automatic Voltage Regulation (AVR) Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

Sleek design Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.

Transformer-block spaced outlets Protect equipment with input transformer blocks without blocking access to other receptacles.

Audible alarms Provides notification of changing utility power and UPS power conditions

LED Indicators Provide easy-to-read status of the unit and utility power conditions.

Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Specifications

BrandAPC
Manufacturer part no.BV500I
Our part no.270C844
EAN0731304338260
CategoryPower & UPS › UPS
Weight4.5 kg
Features
UPS topologyLine-Interactive
Output power capacity0.5 kVA
Output power300 W
WaveformSine
Input operation voltage (min)170 V
Input operation voltage (max)280 V
Input frequency50/60 Hz
Output operation voltage (min)0 V
Output operation voltage (max)0 V
Output frequency regulation50/60 Hz
Surge energy rating156 J
Transfer time (Line Mode to Battery Mode)6 ms
Noise level40 dB
Surge protectionYes
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Low battery alarm, Overload alarm
Ports & interfaces
AC outlet typesC13 coupler
AC outlets quantity1 AC outlet(s)
SmartSlotNo
SmartConnect portNo
Battery
Battery life (max)5 year(s)
Design
Cable length1.52 m
Product colourBlack
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 90%
Certificates
Compliance certificatesRoHS
CertificationCE
Packaging content
Management card includedNo
ManualYes
Weight & dimensions
Width160 mm
Depth305 mm
Height92 mm
Weight3.9 kg
Packaging data
Package width143 mm
Package depth373 mm
Package height237 mm
Package weight4.2 kg
Logistics data
Harmonized System (HS) code85078000
Other features
Battery typeleakproof
Output voltage230 V
APC BV500I uninterruptible power supply (UPS) Line-Interactive 0.5 kVA 300 W 1 AC outlet(s) | Iconic Store
