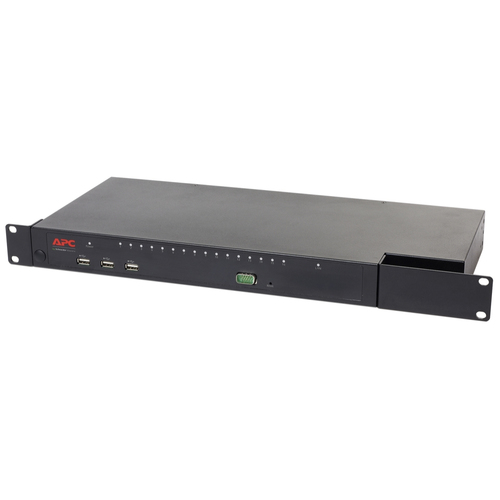

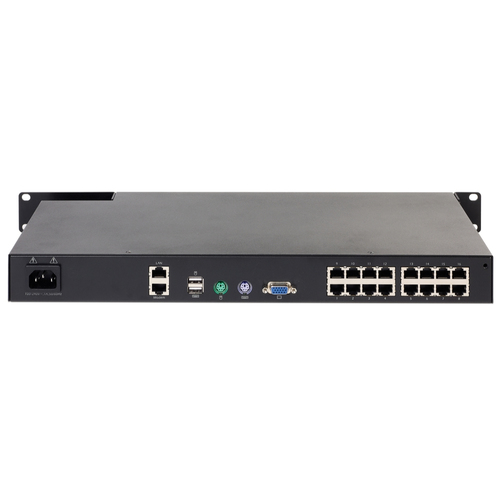

APC KVM1116R, Ethernet LAN, Rack mounting, 1U, Black
The APC KVM 2G Digital/IP Switch supports one remote and one local user, with sixteen ports and virtual media. It is a 1U rack-mountable device. It supports various input voltages and frequencies, and includes a CD with software, installation guide and rack-mount brackets.
Occupies 1U of rack space Conserve valuable rack space in the data center.
Hot Pluggable Operation Add or remove servers without having to power off the switch.
Multi-platform Support Windows, Sun, Unix and Linux compatible.
Scalable Architecture Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user's manual for specific cascading capabilities.
Out-of-band management Troubleshoot servers and diagnose problems in lieu of a working operating system with POST and BIOS-level access to servers.
Multi-platform Support Windows, Sun, Unix and Linux compatible.
Scalable Architecture Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user's manual for specific cascading capabilities.
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | KVM1116R |
| Our part no. | 270C928 |
| EAN | 0731304340195 |
| Category | Networking › KVM & Extenders |
| Weight | 4 kg |
| Ports & interfaces | |
| Number of computers controlled | 16 |
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Certification | C-tick, CE, EAC, FCC Part 15 Class A, ICES-003, TAA compliance, UL-AR, UL 60950-1, VCCI Class A, VDE |
| Display | |
| Built-in display | No |
| Power | |
| AC input frequency | 50 - 60 Hz |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 424 mm |
| Depth | 188 mm |
| Height | 43 mm |
| Weight | 2.59 kg |
| Packaging data | |
| Package width | 619 mm |
| Package depth | 330 mm |
| Package height | 146 mm |
| Package weight | 3.99 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
