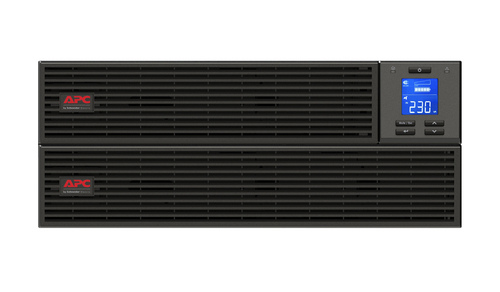

APC SRV10KRIRK uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W

Description

APC SRV10KRIRK, Double-conversion (Online), 10 kVA, 10000 W, 220 V, 240 V, 40/70 Hz

APC Easy UPS SRV RM 10000VA 230V ,with RailKit, External Battery Pack.

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

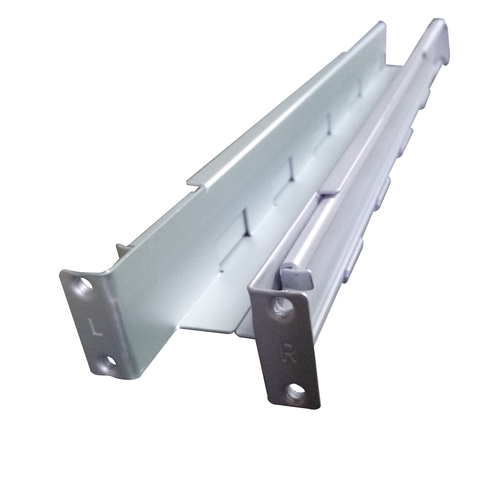

Includes: CD with software, Rack Mounting support rails, User Manual.

Specifications

BrandAPC
Manufacturer part no.SRV10KRIRK
Our part no.270D255
EAN0731304346197
CategoryPower & UPS › UPS
Weight109.5 kg
Features
UPS topologyDouble-conversion (Online)
Output power capacity10 kVA
Output power10000 W
Input operation voltage (min)220 V
Input operation voltage (max)240 V
Input frequency40/70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating600 J
Crest factor3:1
ECO modeYes
Emergency Power Off (EPO)Yes
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Low battery alarm, Overload alarm
Auto-restartYes
Ports & interfaces
AC outlet typesHard Wire 3-wire (1PH + N + G)
USB portYes
Serial interfaceYes
Serial interface typeRS-232
Serial ports quantity1
Emergency Power Off (EPO) connectorYes
SmartSlotYes
SmartConnect portNo
Battery
Automatic battery testYes
Design
Form factorRackmount
Display typeLCD
LED indicatorsYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 14763.6 m
Certificates
Compliance certificatesRoHS
CertificationREACH
Packaging content
Rack mount kitYes
Management card includedNo
ManualYes
Weight & dimensions
Width438 mm
Depth710 mm
Height173 mm
Weight68 kg
Logistics data
Harmonized System (HS) code85078000
Other features
Input connection typeHardWire 3-wire
Nominal output voltage230 V
Nominal input voltage230 V
