Description

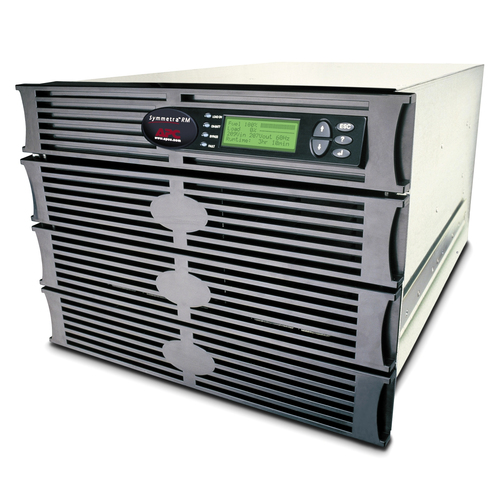

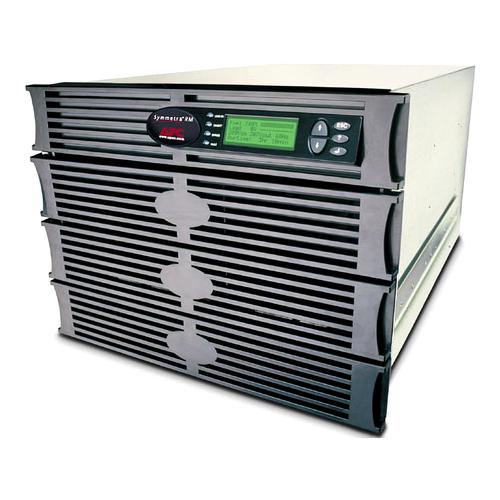

APC Symmetra RM 6kVA N+1 Frame 220-240V, Double-conversion (Online), 6 kVA, 4200 W, 155 V, 276 V, 50 Hz
"This parts kit contains spare parts for the APC product model shown."
Specifications
| Brand | APC |
|---|---|
| Manufacturer part no. | SYHF6KI |
| Our part no. | 270ZA12 |
| EAN | 0731304016892 |
| Category | Power & UPS › UPS Cables & Accessories |
| Weight | 0 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 6 kVA |
| Output power | 4200 W |
| Input operation voltage (min) | 155 V |
| Input operation voltage (max) | 276 V |
| Input frequency | 50 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency regulation | 47 - 53 Hz |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Single-phase input voltage supported | 230 V |
| Efficiency | 89% |
| Ports & interfaces | |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Emergency Power Off (EPO) connector | Yes |
| SmartSlot | Yes |
| Battery | |
| Battery replacement accessibility | End-user |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 3 |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 4 h |
| Design | |
| Form factor | Tower |
| Rack capacity | 8U |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainable packaging | No |
| Packaging recycled materials | Recycled cardboard |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | C-tick, CE, EN 50091-2, EN 60950, IRAM, VDE |
| Weight & dimensions | |
| Width | 483 mm |
| Depth | 730 mm |
| Height | 356 mm |
| Weight | 44.5 kg |
| Packaging data | |
| Package width | 584 mm |
| Package depth | 787 mm |
| Package height | 508 mm |
| Logistics data | |
| Customs product code (TARIC) | 8504409590 |
| Other features | |
| Battery type | SYBT2 |
| Output voltage | 230 V |
