Description

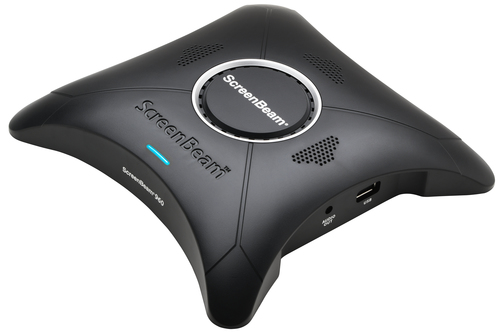

ScreenBeam 960 inc 2 Year Warranty, 1920 x 1080 pixels, AV receiver, Wired & Wireless, Black, HDCP
Designed for the needs of small businesses and start-ups to enable hassle-free wireless presentation and collaboration from Windows, Android and Apple devices.
App-less and dongle-less screen mirroring Screen sharing from any device without the need to download an app or keep dongle nearby. ScreenBeam leads with OS-native Wi-Fi Miracast and AirPlay for familiarity and mitigate user training.
Extended desktop Windows and macOS users can mirror desktop or extend screen to ensure content privacy.
Touch display support Windows users can markup content directly on room displays, instantly capturing changes in Microsoft Office 365 applications.
Centralized Management ScreenBeam CMS included for monitor, manage, and update.
Specifications
| Brand | SCREENBEAM |
|---|---|
| Manufacturer part no. | SBWD960AEU |
| Our part no. | 2B10057 |
| EAN | 0789286820549 |
| Category | AV & Collaboration › Other (5045) |
| Weight | 0.7 kg |
| Features | |
| Type | AV receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Supported network protocols | WPA2-PSK (AES), PEAP-MSCHAP V2, EAP-TLS |
| LED indicators | Yes |
| Supported video modes | 1080p |
| Audio formats supported | LPCM |
| Security algorithms | EAP-TLS, PEAP, WPA-PSK, WPA-TKIP, WPA2-PSK |
| Video compression formats | H.264 |
| HDCP | Yes |
| Product colour | Black |
| Windows operating systems supported | Windows 10, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| Ethernet LAN | Yes |
| RJ-45 input ports | 1 |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB connector type | USB Type-A |
| 3.5 mm (1/8-inch) out | Yes |
| DC-in jack | Yes |
| Power | |
| Power source type | DC |
| Operating voltage | 5 V |
| Input current | 2 A |
| Power consumption (typical) | 5 W |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 168 mm |
| Depth | 168 mm |
| Height | 34.5 mm |
| Packaging data | |
| Package width | 203.2 mm |
| Package depth | 228.6 mm |
| Package height | 66 mm |
| Package weight | 635.029 g |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | HDMI |
| Quick start guide | Yes |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | UL ECOLOGO |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Master (outer) case width | 426.7 mm |
| Master (outer) case length | 609.6 mm |
| Master (outer) case height | 279.4 mm |
| Master (outer) case gross weight | 13.2 kg |
| Products per master (outer) case | 18 pc(s) |
