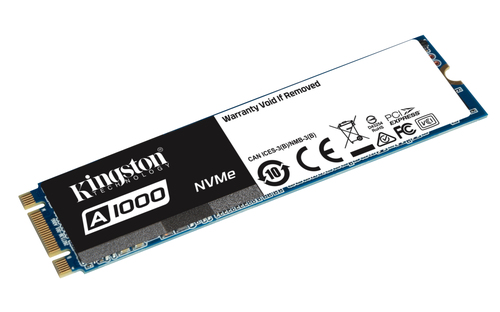

Kingston Technology A1000, 960 GB, M.2, 1500 MB/s

Exceptional responsiveness and ultra-low latency. Kingston’s A1000 solid-state drive is an entry-level PCIe NVMe™ solution with a single-sided M.2 22x80mm design. This form factor is ideal for thinner notebooks and systems with limited space. Using a PCIe NVMe™ Gen 3.0 x2 interface, 4-channel Phison E8 controller and 3D NAND Flash, this drive offers read and write speeds of up to 1,500MB/s and 1,000MB/s*. It is 2X faster than a SATA-based SSD and 20X faster than a traditional hard drive, offering exceptional responsiveness, ultra-low latency and throughput.

More reliable and durable than a hard drive, A1000 is built with NAND Flash semiconductor memory. There are no moving parts, making it far less likely to fail than a mechanical hard drive. It is also cooler and quieter, and its shock and vibration resistance makes it ideal for notebooks and other mobile computing devices.

A1000 is available in multiple capacities from 240GB–960GB** to give you all the space you need for applications, videos, photos and other important documents. You can also replace your hard drive or a smaller SSD with a drive with enough storage capacity for all your files.

* Based on “out-of-box performance” using a SATA Rev 3.0 / PCIe 3.0 motherboard. Speed may vary due to host hardware, software and usage. IOMETER random 4K read/write is based on an 8GB partition. ** Some of the listed capacity on a Flash storage device is used for formatting and other functions and is thus not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston’s Flash Guide at kingston.com/flashguide.

Specifications

BrandKINGSTON
Manufacturer part no.SA1000M8/960G
Our part no.342C055
CategoryHard Drives & SSDs › SSDs
Weight0 kg
Features
SSD capacity960 GB
SSD form factorM.2
InterfacePCI Express
NVMeYes
Memory type3D TLC
Component forPC/Laptop
Read speed1500 MB/s
Write speed1000 MB/s
Random read (4KB)120000 IOPS
Random write (4KB)100000 IOPS
Controller typePhison PS5008-E8
PCI Express interface data lanesx2
Mean time between failures (MTBF)1000000 h
TBW rating600
CertificationCE, FCC, VCCI
Power
Power consumption (read)0.458 W
Power consumption (write)0.908 W
Power consumption (average)0.075623 W
Power consumption (idle)0.011748 W
Weight & dimensions
Width22 mm
Depth80 mm
Height3.5 mm
Weight7.6 g
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating vibration2.17 G
Non-operating vibration20 G
Other features
Product colourBlack, Blue, White
Compliance certificatesRoHS
Logistics data
Harmonized System (HS) code84717070
