Description

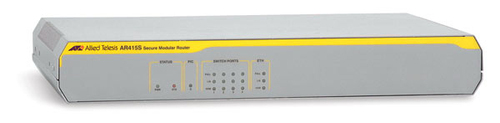

Allied Telesis AT-AR415S, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x, 10 Mbit/s, SNMP, HTTP, 3DES, DES, 16 MB, 90000 h
The AT-AR415S uses a variety of high-speed WAN access technologies to deliver fast, reliable and secure Internet and network access for small and medium-sized businesses. Packaged in a compact one-rack unit chassis, this versatile router provides five 10/100 Fast Ethernet interfaces and supports a variety of Port Interface Cards (PICs).
For the WAN network, the AT-AR415S features one 10/100Mbps Ethernet Port. Also offered is an asynchronous port and four Layer 2 switched LAN ports that are reconfigurable as a DMZ.
Specifications
| Brand | ALLIED TELESIS |
|---|---|
| Manufacturer part no. | AT-AR415S-50 |
| Our part no. | 4253643 |
| Category | Networking › Other (0463) |
| Weight | 2.6 kg |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x |
| Data transfer rate | 10 Mbit/s |
| Supports ISDN connection | Yes |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Supported network protocols | SNMP, HTTP |
| Security | |
| Security algorithms | 3DES, DES |
| MAC address filtering | Yes |
| VPN tunnels quantity | 50 |
| Packaging content | |
| Manual | Yes |
| Quick start guide | Yes |
| User Guide on CD-ROM | Yes |
| Features | |
| Flash memory | 16 MB |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 90000 h |
| Certification | EN55022 A, FCC A, VCCI A, AS/NZS CISPR22 A, EN55024, UL60950, CAN/CSA-C22.2NO. 60950-00, EN60950, UL, cUL,TUV |
| Minimum processor | 266 MHz |
| Minimum RAM | 32 MB |
| Design | |
| Rack capacity | 1U |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 1.75 kg |
| Other features | |
| Maximum data transfer rate | 0.1 Gbit/s |
| Dimensions (WxDxH) | 305 x 190 x 45 mm |
| Compatible operating systems | Windows XP/2000 |
| Connectivity technology | Wired |
