Description

Allied Telesis Wall mount for standard size media converters (10pack), White, 127 mm, 31 mm, 127 mm, 210 g, 48.3 cm (19")

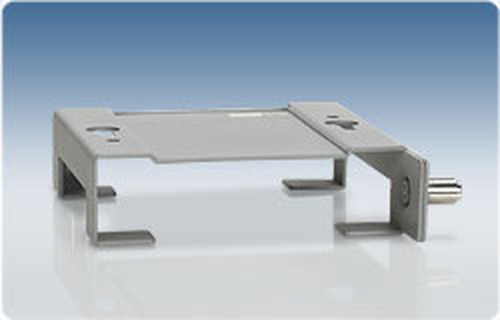

Overview The AT-WLMT is a simple metal bracket that allows the majority of Allied Telesis’ range of standalone media and converters and rate (bridging) converters to be wall-mounted.

Mounting Option Requirements The majority of media converters are used to convert fiber optic connections to copper. Many installations require these media converters to be installed in a 19-inch chassis, using a range of mounting options including AT-TRAY1,AT-TRAY2 and the AT-MCR12. However, other applications such as Fiber-To-The-Home (FTTH), etc, require a small un-obtrusive mounting option that can be discretely placed on a wall or under a table top.The AT-WLMT was designed to meet this demand.

Simple Installation Each AT-WLMT has two circular holes and two ‘key’ slots on the base.The use of the circular holes allows two countersunk screws to mount the bracket on a horizontal surface underneath a table top, whilst the two key slots allow the bracket to be easily wall-mounted.

Security Any media converter or rate (bridging) converter mounted in an AT-WLMT chassis is held securely in place by means of a locking screw.This ensures that the media converter is not easily removed, thus helping to prevent accidental breakage of the fiber optic cable connected to the device, and also theft of the actual unit.

Specifications
