Description
Allied Telesis AT-SBx81XLEM, Gigabit Ethernet, 100,1000 Mbit/s, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, SFP, 802.1x RADIUS, SSH-2, Allied Telesis SwitchBlade x8100

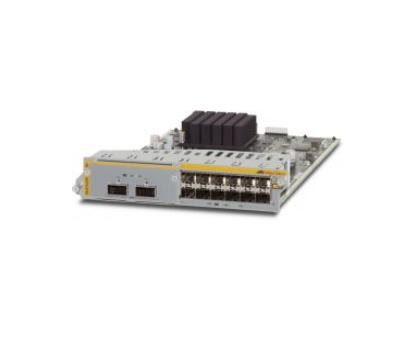

The Allied Telesis AT-SBx81XLEM modular 40G line card provides an expansion bay for adding additional 40GbE or 10GbE ports. It has 12 x Gigabit SFP ports built in.
Specifications
| Brand | ALLIED TELESIS |
|---|---|
| Manufacturer part no. | AT-SBX81XLEM |
| Our part no. | 425A751 |
| Category | Networking › Switch Modules |
| Weight | 1.9 kg |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Flow control support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Jumbo frames support | Yes |
| Link aggregation | Yes |
| Optical fiber | |
| Fiber optic connector | SFP |
| Ports & interfaces | |
| Fiber ports quantity | 12 |
| Performance | |
| Quality of Service (QoS) support | Yes |
| Service level | 3 |
| Queues per port | 8 |
| Access Control List (ACL) | Yes |
| Security algorithms | 802.1x RADIUS, SSH-2 |
| Compatibility | Allied Telesis SwitchBlade x8100 |
| Power | |
| Power consumption (typical) | 44 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Certificates | |
| Safety | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| Electromagnetic compatibility | EN55022 class A, FCC class A, VCCI class A |
| Certification | EN55024, EN61000-3 UL, cUL, TUV RoHS |
| Weight & dimensions | |
| Dimensions (WxDxH) | 207 x 313 x 41 mm |
| Weight | 1.1 kg |
