Description
Allied Telesis AT-SBx81GP24, Gigabit Ethernet, 10,100,1000 Mbit/s, 10BASE-T, 100BASE-TX, 1000BASE-T, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE..., 1.5 MB, 802.1x RADIUS, SSH-2

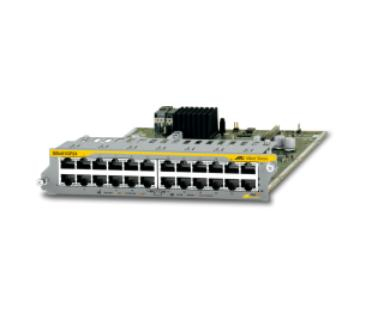

The Allied Telesis SBx81GP24 line card provides 24 Gigabit copper Power over Ethernet Plus (PoE+) ports for the SwitchBlade x8100 Series, excellent for connecting the increasing range of PoE devices without the need to run separate power cabling.
IP phones, wireless access points, and security cameras benefit from installation wherever an Ethernet cable can be placed. PoE+ provides even greater flexibility, allowing the connection of devices requiring up to 30 Watts, such as pan, tilt and zoom security camera.
Specifications
| Brand | ALLIED TELESIS |
|---|---|
| Manufacturer part no. | AT-SBX81GP24 |
| Our part no. | 425A785 |
| Category | Networking › Network Cards & Line Cards |
| Weight | 1.4 kg |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 24 |
| Performance | |
| Quality of Service (QoS) support | Yes |
| Service level | 3 |
| Buffer size per port | 1.5 MB |
| Queues per port | 8 |
| Access Control List (ACL) | Yes |
| Security algorithms | 802.1x RADIUS, SSH-2 |
| Compatibility | Allied Telesis SwitchBlade x8100 |
| Power | |
| Power consumption (typical) | 34.4 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Certificates | |
| Safety | UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 |
| Electromagnetic compatibility | EN55022 class A, FCC class A, VCCI class A |
| Certification | EN55024, EN61000-3 UL, cUL, TUV RoHS |
| Weight & dimensions | |
| Dimensions (WxDxH) | 207 x 313 x 41 mm |
| Weight | 1.1 kg |
| Logistics data | |
| Country of origin | Indonesia |
