Description

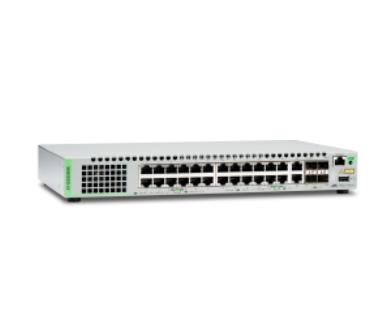

Allied Telesis AT-GS924MX, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
CentreCOM GS900MX/MPX Series switches are cost-effective, fully managed, and stackable. The switches in this series can serve as an AMF node when an AMF Master switch is available in the network, which helps to reduce network running costs by automating and simplifying many day-to-day tasks.
Specifications
| Brand | ALLIED TELESIS |
|---|---|
| Manufacturer part no. | AT-GS924MX |
| Our part no. | 425A793 |
| Category | Networking › Switches |
| Weight | 3.7 kg |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Combo SFP ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| Console port | RJ-12 |
| USB 2.0 ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN |
| Data transmission | |
| Switching capacity | 92 Gbit/s |
| Throughput | 68.44 Mpps |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Security | |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 3DES, 802.1x RADIUS, AES, DES, EAP, MD5, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| Multicast features | |
| Multicast support | Yes |
| Multicast MAC address table | 512 entries |
| Protocols | |
| Management protocols | SNMP, Telnet |
| Supported network protocols | IPv4 / IPv6 |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | White |
| LED indicators | Yes |
| Safety | EN60950-1 (TUV), UL 60950-1(cULus), EN60825-1 |
| Electromagnetic compatibility | EN55024 |
| Performance | |
| Physical stacking (units) | 4 |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
| Noise level | 27.1 dB |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (max) | 30.7 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 2000 m |
| Non-operating altitude | 0 - 4000 m |
| Heat dissipation | 104.6 BTU/h |
| Weight & dimensions | |
| Width | 339 mm |
| Depth | 211 mm |
| Height | 44 mm |
| Weight | 2.5 kg |
| Certificates | |
| Certification | FCC Class A, EN55022 Class A, EN61000-3-2, EN61000-3-3, VCCI Class A, CISPR Class A, RCM, CE |
