Description

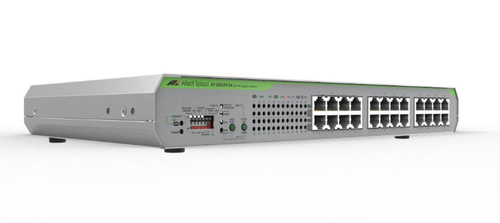

Allied Telesis AT-GS920/24-50, Unmanaged, Gigabit Ethernet (10/100/1000)
Gigabit Ethernet DIP Switch The Allied Telesis GS920/24 is a 24-port 10/100/1000T unmanaged DIP switch with internal PSU, offering secure, unmanaged Gigabit switching for the desktop and small networks.
Specifications
| Brand | ALLIED TELESIS |
|---|---|
| Manufacturer part no. | AT-GS920/24-50 |
| Our part no. | 425A819 |
| Category | Networking › Switches |
| Weight | 3.5 kg |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-TX |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Switching capacity | 48 Gbit/s |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Grey |
| LED indicators | Yes |
| Safety | UL60950-1, CSA C22.2 No.60950-1-07, IEC60950-1 |
| Performance | |
| Buffer size | 524 KB |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.2 A |
| Power consumption (max) | 18 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 2000 m |
| Weight & dimensions | |
| Width | 341 mm |
| Depth | 210 mm |
| Height | 44 mm |
| Weight | 2.1 kg |
