Description

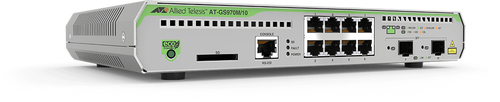

Allied Telesis AT-GS970M/10PS-50, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Managed Gigabit Edge Switches The CentreCOM® GS970M Series of Layer 3 switches provide high performance with gigabit to the desktop, the ability to connect and power endpoints, and lower management costs—a high value network edge solution from Allied Telesis.
Overview - Reduce costs and automate network and device management with the Allied Telesis Autonomous Management Framework™ (AMF) - Flexible deployment with 10, 18 and 28 port models - High-speed gigabit network access for power users - Support converged networks with PoE+ to power devices like wireless access points, digital surveillance cameras and IP phones - Easy management with an industry-standard Command Line Interface (CLI) and intuitive Graphical User Interface (GUI)
Key Features - AlliedWare Plus Enterprise-class operating system - Eco-friendly for reduced running costs - Network Access Control (NAC) for edge security - Ethernet Protection Switched Ring (EPSR) enables resilient high-speed ring-based networks - Static Routing and RIP support Layer 3 environments
Specifications
| Brand | ALLIED TELESIS |
|---|---|
| Manufacturer part no. | AT-GS970M/10PS-50 |
| Our part no. | 425A855 |
| EAN | 0767035211572 |
| Category | Networking › KVM & Extenders |
| Weight | 2.9 kg |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Port-based VLAN |
| Number of VLANs | 2048 |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| Throughput | 14.9 Mpps |
| MAC address table | 16000 entries |
| Latency (10-100 Mbps) | 7.8 µs |
| Latency (1 Gbps) | 3.4 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black, Grey |
| LED indicators | Yes |
| Safety | FCC, EN55022, EN61000-3-2, EN61000-3-3, VCCI, CISPR, EN55024, EN60950-1, UL 60950-1, EN60825-1 |
| Performance | |
| Memory type | DDR-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 64 MB |
| Noise level | 33 dB |
| Power | |
| Power consumption (max) | 16 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4000 m |
| Heat dissipation | 55 BTU/h |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 275 mm |
| Height | 42.5 mm |
| Weight | 2.1 kg |
| Packaging data | |
| Package width | 430 mm |
| Package depth | 360 mm |
| Package height | 150 mm |
| Package weight | 3.45 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
