Description

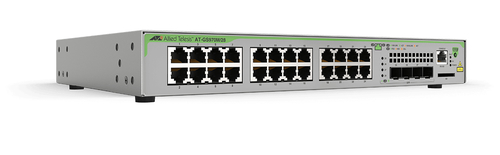

Allied Telesis GS970M, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
The GS970M Series of Layer 3 switches provide high performance with gigabit to the desktop, the ability to connect and power endpoints, and lower management costs—a high value network edge solution from Allied Telesis.
- Reduce costs and automate network and device management with the Allied Telesis Autonomous Management Framework™ (AMF) - Flexible deployment with 10, 18 and 28 port models - High-speed gigabit network access for power users - Support converged networks with PoE+ to power devices like wireless access points, digital surveillance cameras and IP phones - Easy management with an industry-standard Command Line Interface (CLI) and intuitive Graphical - User Interface (GUI) - AlliedWare Plus™ Enterprise-class operating system - Eco-friendly for reduced running costs - Network Access Control (NAC) for edge security - Ethernet Protection Switched Ring (EPSRing™) enables resilient high-speed ring-based networks - Static Routing and RIP support Layer 3 environments
Specifications
| Brand | ALLIED TELESIS |
|---|---|
| Manufacturer part no. | AT-GS970M/28PS-50 |
| Our part no. | 425A865 |
| Category | Networking › KVM & Extenders |
| Weight | 6.3 kg |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN |
| Number of VLANs | 4094 |
| Data transmission | |
| Switching capacity | 56 Gbit/s |
| Throughput | 41.7 Mpps |
| MAC address table | 16000 entries |
| Latency (10-100 Mbps) | 8.6 µs |
| Latency (1 Gbps) | 4.3 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| Security | |
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, SHA-1, SHA-2, SHA-256 |
| MAC address filtering | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Web-based authentication |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Performance | |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 64 MB |
| Noise level | 34 dB |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 26 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4000 m |
| Heat dissipation | 89 BTU/h |
| Weight & dimensions | |
| Width | 341 mm |
| Depth | 231 mm |
| Height | 44 mm |
| Weight | 2.4 kg |
| Packaging data | |
| Package width | 430 mm |
| Package depth | 360 mm |
| Package height | 150 mm |
| Package weight | 4 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
