Description

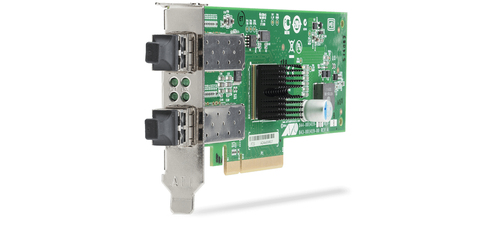

Allied Telesis AT-ANC10S/2-001, Internal, Wired, PCI Express, Fiber, 10000 Mbit/s
The ANC10S/2 is a dual-port direct-attach 10 Gbps PCIe x8 Network Interface Card. This product enables convergence of all the networked communications possible in a server, such as data network (LAN).
Specifications
| Brand | ALLIED TELESIS |
|---|---|
| Manufacturer part no. | AT-ANC10S/2-001 |
| Our part no. | 425A898 |
| Category | Networking › Network Cards & Line Cards |
| Weight | 0.1 kg |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| PCI version | 2.0 |
| Network | |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.2, IEEE 802.3ad |
| Wi-Fi | No |
| Jumbo frames support | Yes |
| Auto-negotiation | Yes |
| Jumbo frames | 9000 |
| Load balancing system | Yes |
| Design | |
| Component for | Server |
| Internal | Yes |
| LED indicators | Yes |
| Certification | UL, FCC/EN55022 Class B, TUV, EN55024, CE, C-TICK, VCCI |
| Power | |
| Output voltage | 3.3-12 V |
| Power consumption (typical) | 6 W |
| System requirements | |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 160 mm |
| Height | 68.9 mm |
| Weight | 78 g |
| Packaging content | |
| Mounting brackets included | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Other features | |
| Flow control support | Yes |
