Description

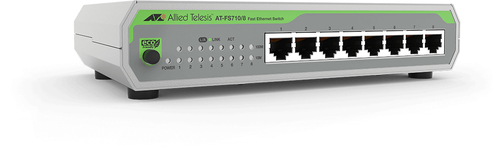

Allied Telesis FS710/8, Unmanaged, Fast Ethernet (10/100), Full duplex, Wall mountable
The Allied Telesis FS710 Series is the economical and eco-friendly solution for today’s networks, providing an extensive range of cost-effective options.
The FS710 Series switches providesilent operation, with easy set-upand simple connectivity for desktop and small to medium network environments.
High performance Full auto-negotiating 10/100 ports allow FS710 switches to detect the speed and duplex modes of attached devices, and automatically configure for the best possible performance.
Quality and reliability Allied Telesis is a world-wide leader in unmanaged Ethernet switches. Shipping more than 250,000 unmanaged switches every year, Allied Telesis offers proven reliability, and industry-recognized quality.
Specifications
| Brand | ALLIED TELESIS |
|---|---|
| Manufacturer part no. | AT-FS710/8-30 |
| Our part no. | 425A911 |
| EAN | 0767035211824 |
| Category | Networking › Unmanaged Switches |
| Weight | 1.2 kg |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 1.6 Gbit/s |
| Throughput | 1.19 Mpps |
| MAC address table | 2000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 2048 |
| Packet buffer memory | 0.096 MB |
| Design | |
| Product colour | Green, Grey |
| LED indicators | Activity, Link, Power |
| Wall mountable | Yes |
| Safety | UL60950-1, CSAC22.2 №60950-1, EN60950-1(TUV), CE |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 2.5 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 2000 m |
| Weight & dimensions | |
| Width | 196 mm |
| Depth | 124 mm |
| Height | 38 mm |
| Weight | 710 g |
| Certificates | |
| Certification | VCCI Class B FCC Class B EN55032 Class A CISPR 32 Class B RCM Class B |
