Description

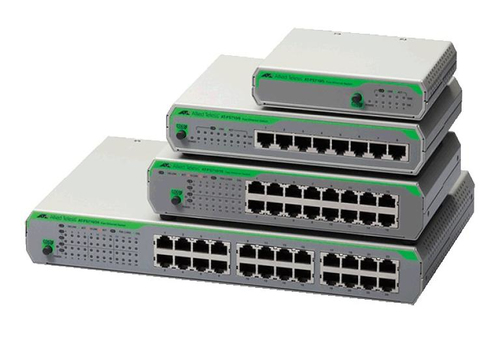

Allied Telesis AT-FS710/8-50, Unmanaged, Fast Ethernet (10/100), Rack mounting
FS710 series- 802.1x auth with EAPOL passthrough
When 802.1x authentication is executed, EAPOL packets is sent from supplicant. However if the switch does not support EAPOL passthrough, EAPOL and EAP packets is forwarded to Authenticator. As a result, authentication does not start. FS710 series supports EAPOL passthrough, so it is suitable as HUB when using 802.1x auth with EAP.
Specifications
| Brand | ALLIED TELESIS |
|---|---|
| Manufacturer part no. | AT-FS710/8-50 |
| Our part no. | 425A915 |
| EAN | 0767035211848 |
| Category | Networking › Unmanaged Switches |
| Weight | 1.1 kg |
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1x |
| 10G support | No |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Data transmission | |
| Throughput | 1.2 Mpps |
| MAC address table | 2000 entries |
| Jumbo frames support | Yes |
| Security | |
| DHCP features | DHCPv6 client, DHCPv6 relay |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Width | 196 mm |
| Depth | 124 mm |
| Height | 44 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
