Description

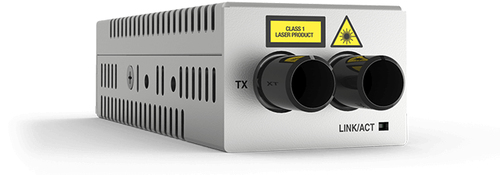

Allied Telesis AT-DMC1000/ST-90, 1000 Mbit/s, 1000Base-T, 1000Base-SX, IEEE 802.1Q, Gigabit Ethernet, 10,100,1000 Mbit/s
Gigabit Desktop USB-Powered Media Converter This desktop media converter features 1000T to 1000SX conversion with ST multi-mode fiber connector supporting a distances from 220m to 550m. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.
Specifications
| Brand | ALLIED TELESIS |
|---|---|
| Manufacturer part no. | AT-DMC1000/ST-90 |
| Our part no. | 425B102 |
| EAN | 0767035206806 |
| Category | Networking › Transceivers & SFPs |
| Weight | 0.2 kg |
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-T |
| Converter output interface | 1000Base-SX |
| Networking standards | IEEE 802.1Q |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transfer rate | 1000 Mbit/s |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| VLAN support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Rate limiting | Yes |
| Duplex system | Full, Half |
| Link Loss Carry Forward (LLCF) supported | Yes |
| Link Loss Return (LLR) supported | Yes |
| Cable types supported | Fiber |
| Performance | |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Tx power (min) | -9.5 dBmW |
| Tx power (max) | -4 dBmW |
| Rx power (min) | -17 dBmW |
| Features | |
| Internal | No |
| LED indicators | Yes |
| Product colour | Grey |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | ST |
| DC-in jack | Yes |
| Power | |
| Output voltage | 5 V |
| Weight & dimensions | |
| Width | 31.8 mm |
| Depth | 91.4 mm |
| Height | 21.6 mm |
| Weight | 113 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Packaging content | |
| AC adapter included | Yes |
| Certificates | |
| Compliance certificates | RoHS |
| Safety | UL60950-1, EN60950-1 |
| Certification | FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI |
