Description
SilverNet 52 PSU SW4, Power supply, Black, Over current, Over voltage, Short circuit, IEC-61000-4-5 Level 3, IEC-61000-4-4 / 1995 3, (EN 55024:1998+A1:2001+A2:2003,EN 61000-4-2), (EN..., 120 W, 100 - 240 V

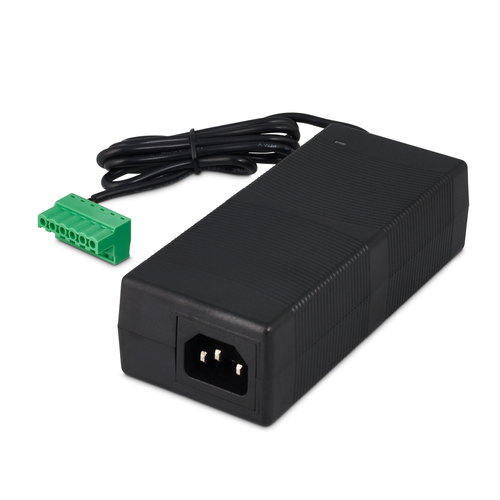

The SIL 52 PSU SW4 is a 120W 2.3A desktop Power Supply Unit for Series 7 Switch Range.
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL 52 PSU SW4 |
| Our part no. | 4M30002 |
| EAN | 5060693980619 |
| Category | Phones & Mobile Accessories › Power Banks |
| Weight | 0.2 kg |
| Features | |
| Product type | Power supply |
| Product colour | Black |
| Power protection features | Over current, Over voltage, Short circuit |
| Network | |
| Compliance industry standards | IEC-61000-4-5 Level 3, IEC-61000-4-4 / 1995 3, (EN 55024:1998+A1:2001+A2:2003,EN 61000-4-2), (EN 55024:1998+A1:2001+A2:2003,EN 61000-4-2) FCC part 15 : Class B for radiated and conducted emissions. EN55032：2015 , Class B for radiated and conducted emissions. GB9254-2008,GB17625.1-2012 |
| Power | |
| Total power | 120 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 63 Hz |
| Maximum current | 2.3 A |
| Inrush current | 60 A |
| DC output voltage | 52 V |
| Voltage tolerance | 3% |
| Ripple & noise | 300 mVpp |
| Power requirements | 48V DC |
| Certificates | |
| Certification | CE, UL62368, EN62368, GB4943, GB8898, EN60950 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 68.4 mm |
| Depth | 161 mm |
| Height | 32.5 mm |
| Weight | 458 g |
| Packaging data | |
| Package width | 110 mm |
| Package depth | 200 mm |
| Package height | 55 mm |
| Package weight | 480 g |
| Packaging content | |

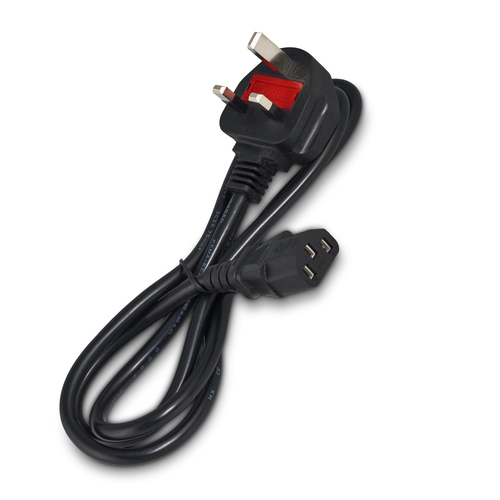

| Packaging content | 1 x 52W PSU and 1 x UK power lead |
| Logistics data | |
| UK Trade Tariff code | 85044095 |
| Country of origin | United Kingdom |
| Warranty period | 1 year(s) |
