Description
SilverNet BASE 500-360, 5 GHz, 500 Mbit/s, 256-bit AES, SNMP, SNMPv2, SSH, 10,100,1000 Mbit/s
The SIL BASE 500-360 is a multipoint receiver with built-in 360 degree omni antennas. Using MIMO spatial multiplexing and its ultrafast radio speed, the BASE 500-360 offers up to 500Mbps full duplex.
Works with the MICRO single radio as a remote transmitter at distances up to 1km.
The SIL BASE 500-360 is fully integrated with our FREE SilverView network monitoring software ensuring you have an outstanding feature packed solution.
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL BASE 500-360 |
| Our part no. | 4M30015 |
| Category | Networking › Wireless Access Points |
| Weight | 0 kg |
| Features | |
| 2.4 GHz | No |
| 5 GHz | Yes |
| Maximum data transfer rate | 500 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Throughput data rate | 867 Mbit/s |
| Frequency band | 5.1 - 5.8 GHz |
| Bandwidth | 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af |
| Cabling technology | 10/100/1000Base-T(X) |
| Channels quantity | 25 channels |
| Channel bandwidth | 40 MHz |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| Control channel mode | Tagged & untagged |
| Full duplex | Yes |
| Duplex mode auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Fit AP mode features | Mesh networking |
| WLAN channel features | WLAN channel management |
| VLAN support | Yes |
| Virtual LAN features | IP subnet–based VLAN, Port-based VLAN, Protocol-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID) |
| Number of VLAN IDs | 4095 |
| Automatic interference avoidance | Yes |
| Wireless isolation | Yes |
| STA isolation (same VLAN) | Yes |
| Band steering | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Quality of Service (QoS) support | Yes |
| Maximum indoor range | 1000 m |
| Maximum outdoor range | 1000 m |
| Transmitting power | 26 dBmW |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, [email protected] |
| Security | |
| Security algorithms | 256-bit AES, SNMP, SNMPv2, SSH |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Hidden SSID, Multiple SSIDs, SSID broadcast |
| Management features | |
| Web-based management | Yes |
| Local AP management | Telnet |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| Output voltage | 24-48, 48-56 V |
| Power consumption (typical) | 6 W |
| Power consumption (max) | 16 W |
| Power supply | 15.4 W |
| Power plug type | Type G |
| Design | |
| Placement | Pole |
| Product colour | White |
| International Protection (IP) code | IP66 |
| Reset button | Yes |
| LED indicators | LAN, Signal strength |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 4 |
| Antenna gain level (max) | 7 dBi |
| Antenna connector type | RP-MMCX |
| Number of connectors | 2 |
| Polarization | Dual polarization |
| Performance | |
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Certificates | |
| Certification | CE, FCC |
| Weight & dimensions | |
| Width | 240 mm |
| Depth | 240 mm |
| Height | 300 mm |
| Weight | 2.5 kg |
| Packaging data | |
| Package width | 240 mm |
| Package depth | 240 mm |
| Package height | 300 mm |
| Package weight | 3 kg |
| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| PoE adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |

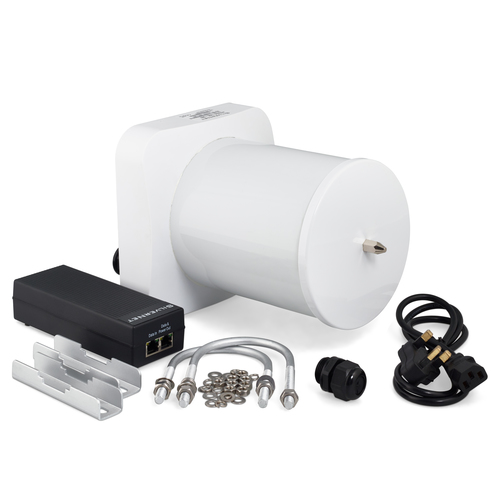

| Packaging content | Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket. |
| Bundled software | SilverView Pro Network Management & Monitoring Software |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 90 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Country of origin | United Kingdom |
