SilverNet AP1200-360, 2.4 GHz, 5 GHz, 1167 Mbit/s, 256-bit AES, SNMP, SNMPv2, SSH, 10,100,1000 Mbit/s

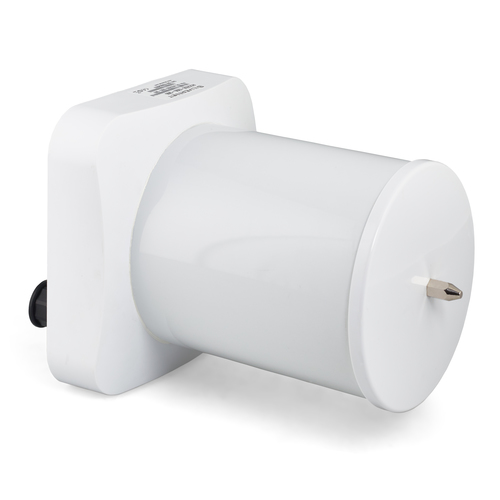

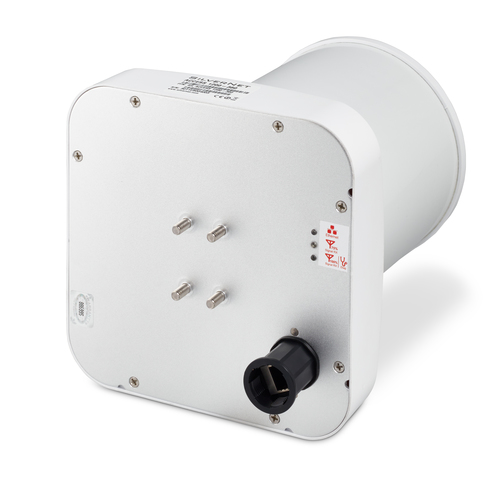

The ACCESS 1200 360 Dual AP is a highly secure Dual Frequency WiFi access Point. Enhanced features, including, MIMO spatial multiplexing, ultrafast radio speed, gives the ACCESS 1200 360 Dual AP unparalleled data throughput capabilities of up to 240Mbps Duplex on 802.11n 2.4GHz and up to 500Mbps Duplex on 802.11ac 5GHz frequencies simultaneously.
The ACCESS 1200 360 Dual AP can create multiple AP cells, which increases the number of devices able to connect per node and can achieve radio speeds up to 300Mbps and 867Mbps giving a potential bandwidth of 1167Mbps. It is fully integrateable with existing or new network installations were stable long range WiFi is required for connecting laptops, tablets or handheld devices.
Supports Bridging, MESHING, Roaming, PoE and comes with our FREE SilverView Controller Software.
The SilverNet ACCESS Range 1200 360 Dual AP is a class leading wireless AP system that has been optimised for stable and reliable transmission over distances that require BYOD (Bring Your Own Device) access such as WiFi coverage.
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL AP1200-360 |
| Our part no. | 4M30018 |
| EAN | 5060693980251 |
| Category | Networking › Wireless Access Points |
| Weight | 2.5 kg |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.412-2.472, 5.1-5.8 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af |
| Cabling technology | 10/100/1000Base-T(X) |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| Full duplex | Yes |
| Duplex mode auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Virtual LAN features | IP subnet–based VLAN, Interface-based VLAN, Multiple VXLAN (MUX VLAN), Port-based VLAN, Private VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID) |
| Number of VLAN IDs | 4095 |
| Dynamic Frequency Selection (DFS) | Yes |
| Quality of Service (QoS) support | Yes |
| Transmitting power | 26 dBmW |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, -72dBm@867Mbps, [email protected] |
| Security | |
| Security algorithms | 256-bit AES, SNMP, SNMPv2, SSH |
| MAC address filtering | Yes |
| Management features | |
| Web-based management | Yes |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| Output voltage | 24-48, 48-56 V |
| Power consumption (typical) | 6 W |
| Power consumption (max) | 16 W |
| Power supply | 15.4 W |
| Power plug type | Type G |
| Design | |
| Placement | Pole |
| Product colour | White |
| International Protection (IP) code | IP66 |
| Reset button | Yes |
| LED indicators | LAN, Signal strength |
| Cable length | 100 m |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 4 |
| Antenna gain level (max) | 7 dBi |
| Antenna connector type | RP-MMCX |
| Polarization | Dual polarization |
| Performance | |
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Certificates | |
| Certification | CE, FCC |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 180 mm |
| Height | 250 mm |
| Weight | 2 kg |
| Packaging data | |
| Package width | 240 mm |
| Package depth | 240 mm |
| Package height | 300 mm |
| Package weight | 3 kg |
| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| PoE adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |

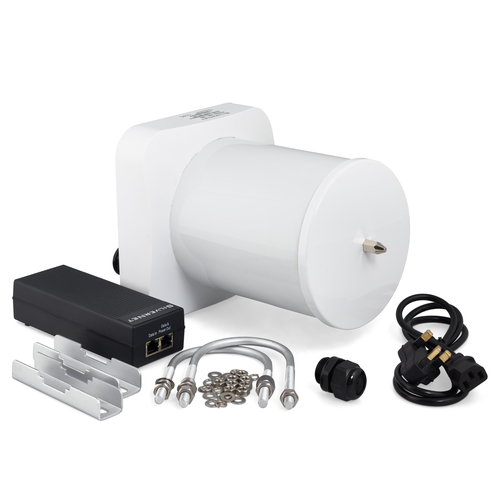

| Packaging content | Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket. |
| Bundled software | SilverView Pro Network Management & Monitoring Software |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 90 °C |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Country of origin | United Kingdom |
