Description
SilverNet LITE 500, Network bridge, 500 Mbit/s, Wi-Fi, Ethernet LAN, Wall mountable, White

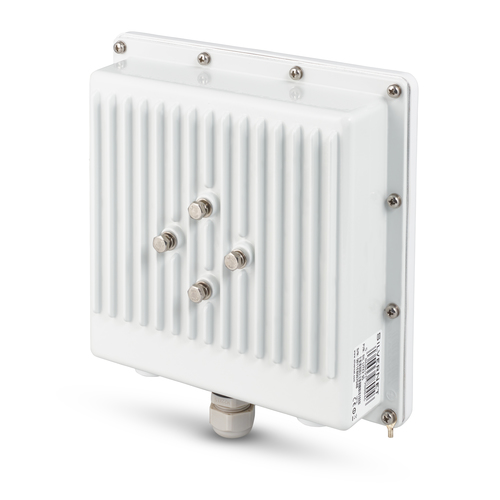

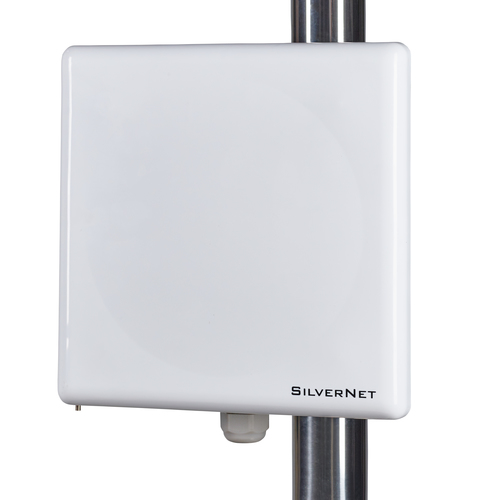

The SIL LITE 500 is an outdoor single radio capable of transmitting up to 500Mbps over distances of up to 6km. It can be used for a Point to Point or Point to MultiPoint network. Housed in a robust metal enclosure, it is designed to resist external electromagnetic interference and includes built-in surge protection to guard against lightning strikes and power surges.

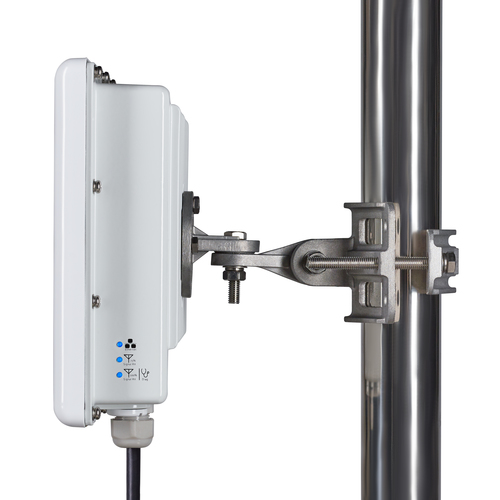

This device comes complete with PoE injector and heavy-duty 3-axis tilt-and-swivel bracket. It features a built-in dual-polarized 18dBi antenna and includes all the capabilities of the standard SIL LITE and SIL LITE 240.
With the addition of our free "SilverView" network monitoring software, this device provides an outstanding, feature-rich solution.
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL LITE 500 |
| Our part no. | 4M30024 |
| Category | Networking › Wireless Access Points |
| Weight | 0 kg |
| Data transmission | |
| Maximum data transfer rate | 500 Mbit/s |
| Maximum transfer distance | 6000 m |
| Supported data transfer rates | 240Mbps - 500Mbps |
| Antenna | |
| Antenna design | Internal |
| Antenna gain level (max) | 18 dBi |
| Pan/tilt-axis range | 180° |
| Antennas quantity | 1 |
| Wireless LAN features | |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1300 Mbit/s |
| Frequency band | 5.1 - 5.8 GHz |
| Transmission gain | 0 - 18 dB |
| Signal strength | -40 dBm |
| Channels quantity | 25 channels |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, [email protected] |
| Output power (dBm) | 26 |
| Indoor range | 6000m |
| Outdoor range | 6000m |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x |
| Cabling technology | 10/100/1000Base-T(X) |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Static IP | Yes |
| Dynamic IP | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Security algorithms | 256-bit AES, 802.1x RADIUS, SNMP, SNMPv2, SSH |
| MAC address filtering | Yes |
| Authentication method | WPA2 AES |
| Management features | |
| Management protocols | SNMP V2 |
| Web-based management | Yes |
| DHCP client | Yes |
| Features | |
| Product type | Network bridge |
| Product colour | White |
| Remote control function | Yes |
| LED indicators | LAN, Signal strength |
| Wall mountable | Yes |
| Reset button | Yes |
| International Protection (IP) code | IP67 |
| Surge protection | Yes |
| Quality of Service (QoS) support | Yes |
| Network Time Protocol (NTP) client | Yes |
| Mean time between failures (MTBF) | 60000 h |
| System requirements | |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Power | |
| Power source type | DC, PoE |
| AC input voltage | 100-240 V |
| Power supply | 15.4 W |
| DC input voltage | 24-48/48-56 V |
| Power consumption (typical) | 6 W |
| Power consumption (max) | 16 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 48 V |
| Power plug type | Type G |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | -4 - 158 °F |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 90 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Certificates | |
| Certification | CE, FCC |
| Weight & dimensions | |
| Antenna diameter | 30 cm |
| Width | 215 mm |
| Depth | 215 mm |
| Height | 77 mm |
| Weight | 1.6 kg |
| Packaging content | |
| Packaging content | Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket. |
| Grounding | Yes |
| PoE+ Injector(s) | Yes |
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
| Antenna included | Yes |
| Quick installation guide | Yes |
| Packaging data | |
| Package width | 310 mm |
| Package depth | 395 mm |
| Package height | 100 mm |
| Package weight | 2.74 kg |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Country of origin | United Kingdom |
