Description
SilverNet LITE 240-PCP, Network bridge, 240 Mbit/s, Wi-Fi, Ethernet LAN, Wall mountable, White
The SIL LITE 240-PCP is an outdoor wireless link that can transmit up to 240Mbps at distances as far as 6km. The radio has a metal enclosure which offers enhanced protection from any external electromagnetic interference and has built-in surge protection to protect itself from lightening strikes and power surges.

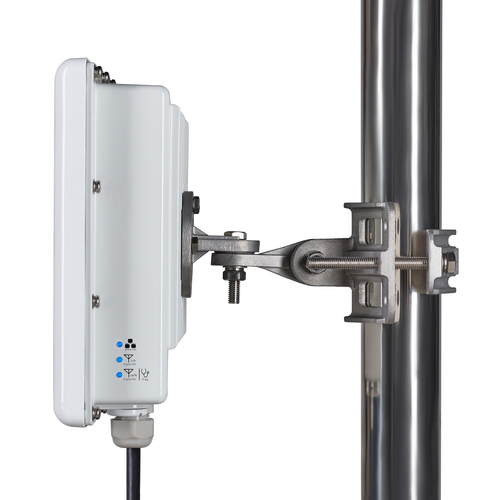

The SIL LITE 240-PCP comes as a pre-configured pair and includes PoE injectors and Heavy duty 3 axis Tilt and Swivel brackets. It has a built-in dual polarised 18dBi antenna, includes all the features of the standard LITE PCP and is upgradable to 500Mbps via a software key.
This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged.
The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines.
Couple that with the FREE SilverView network monitoring software and you have an outstanding feature packed solution.
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL LITE 240-PCP |
| Our part no. | 4M30035 |
| Category | Networking › Wireless Access Points |
| Weight | 0 kg |
| Data transmission | |
| Maximum data transfer rate | 240 Mbit/s |
| Maximum transfer distance | 6000 m |
| Supported data transfer rates | 240Mbps |
| Antenna | |
| Antenna design | Internal |
| Antenna gain level (max) | 18 dBi |
| Pan/tilt-axis range | 180° |
| Antennas quantity | 1 |
| Wireless LAN features | |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1300 Mbit/s |
| Frequency band | 5.1 - 5.8 GHz |
| Transmission gain | 0 - 18 dB |
| Signal strength | -40 dBm |
| Channels quantity | 25 channels |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, [email protected] |
| Output power (dBm) | 26 |
| Indoor range | 6000m |
| Outdoor range | 6000m |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x |
| Cabling technology | 10/100/1000Base-T(X) |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Static IP | Yes |
| Dynamic IP | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Security algorithms | 256-bit AES, 802.1x RADIUS, SNMP, SNMPv2, SSH |
| MAC address filtering | Yes |
| Authentication method | WPA2 AES |
| Management features | |
| Management protocols | SNMP V2 |
| Web-based management | Yes |
| DHCP client | Yes |
| Features | |
| Product type | Network bridge |
| Product colour | White |
| Remote control function | Yes |
| LED indicators | LAN, Signal strength |
| Automatic Transmit Power Control (ATPC) | Yes |
| Wall mountable | Yes |
| Reset button | Yes |
| International Protection (IP) code | IP67 |
| Surge protection | Yes |
| Quality of Service (QoS) support | Yes |
| Network Time Protocol (NTP) client | Yes |
| Mean time between failures (MTBF) | 60000 h |
| System requirements | |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Power | |
| Power source type | DC, PoE |
| AC input voltage | 100 - 240 V |
| Power supply | 15.4 W |
| DC input voltage | 24-48/48-56 V |
| Power consumption (typical) | 6 W |
| Power consumption (max) | 16 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 48 V |
| Power plug type | Type G |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | -4 - 158 °F |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 90 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Certificates | |
| Certification | CE, FCC |
| Weight & dimensions | |
| Antenna diameter | 30 cm |
| Width | 215 mm |
| Depth | 215 mm |
| Height | 77 mm |
| Weight | 1.6 kg |
| Packaging content | |
| Packaging content | Includes 2 x radios, 2 x PoE injector PSU's and 2 x Tilt and Swivel 3 Axis mounting brackets. |
| Grounding | Yes |
| PoE+ Injector(s) | Yes |
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
| Antenna included | Yes |
| Quick installation guide | Yes |
| Packaging data | |
| Package width | 220 mm |
| Package depth | 310 mm |
| Package height | 410 mm |
| Package weight | 5.81 kg |
| Package type | Box |
| Quantity per pack | 2 pc(s) |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Country of origin | United Kingdom |
