Description

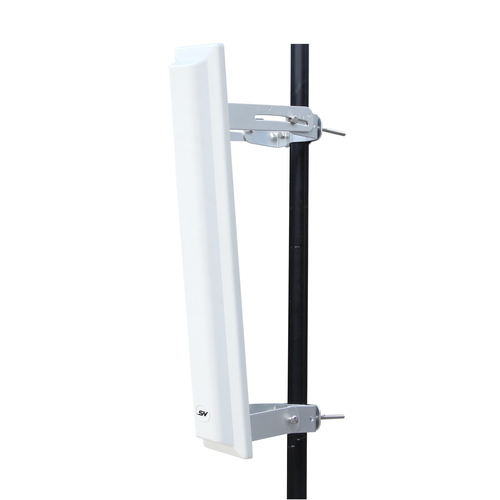

SilverNet SAN5819-120, 19 dBi, 4.9 - 5.8 GHz, 50 Ω, 120°, 4°, Sector antenna
The SIL SAN5819-120 is an outdoor sector antenna with a 120 degree horizontal beam width. It is fully compatible with our Pro Range multipoint receivers. The antenna operates in the 5GHz band.

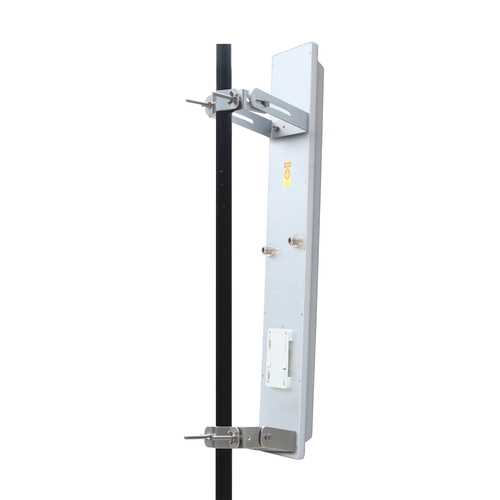

It has 2 x N-type Female connectors.
To connect it to one of our multipoint receivers you will need some LMR400 cables. SilverNet offers these cables in 1, 2, 4 and 8 Metre lengths.
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL SAN 5819-120 |
| Our part no. | 4M30076 |
| Category | Networking › Wireless Access Points |
| Weight | 0 kg |
| Performance | |
| Frequency band | 4.9 - 5.8 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 120° |
| Vertical beam width | 4° |
| Antenna gain level (max) | 19 dBi |
| Features | |
| Antenna type | Sector antenna |
| Antenna connector type | 2x N-type |
| Connector gender | Female |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | <2.0 |
| Product colour | White |
| Waterproof | Yes |
| Survival wind speed | 241.4 km/h |
| Wind load | 150 |
| Maximum operating distance | 3000 m |
| Mounting | Wall/Pole |
| Purpose | Outdoor |
| Front to back ratio | 20 dB |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 50 mm |
| Height | 700 mm |
| Weight | 3 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Mounting brackets included | Yes |
| Bolts included | Yes |
| Logistics data | |
| UK Trade Tariff code | 85177100 |
| Country of origin | United Kingdom |
