Description
SilverNet OAN5812, 13 dBi, 4.9 - 5.8 GHz, 50 Ω, 360°, 7°, Omni-directional antenna

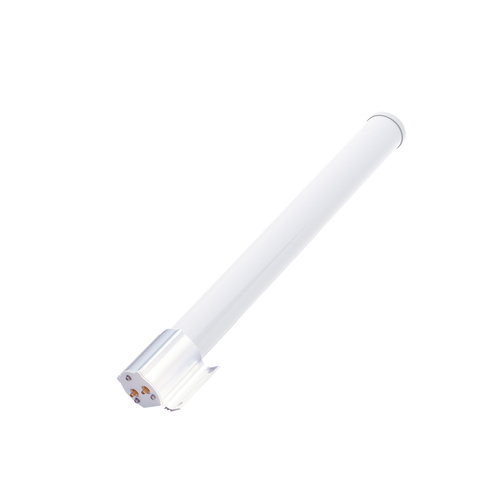

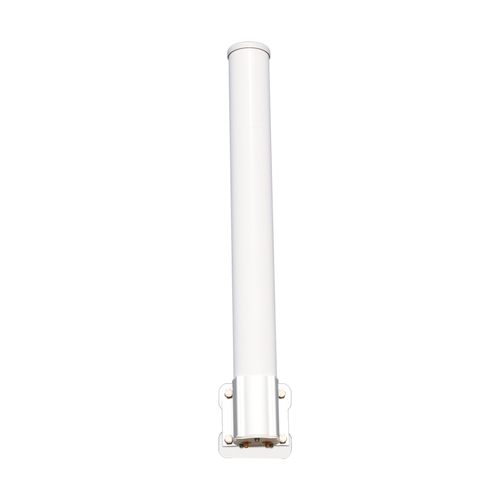

The SIL OAN5812 is an outdoor Omni antenna with a 360 degree horizontal beam width. It operates in the 5GHz band as is fully compatible with our Pro Range multipoint receivers.
It has 2 x N-type Female connectors.
To connect it to one of our multipoint receivers you will need some LMR400 cables. SilverNet offers these cables in 1, 2, 4 and 8 Metre lengths.
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL OAN 5812 |
| Our part no. | 4M30080 |
| Category | Networking › Wireless Access Points |
| Weight | 0 kg |
| Performance | |
| Frequency band | 4.9 - 5.8 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 7° |
| Antenna gain level (max) | 13 dBi |
| Features | |
| Antenna type | Omni-directional antenna |
| Antenna connector type | 2x N-type |
| Connector gender | Female |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | <2.0 |
| Product colour | White |
| Waterproof | Yes |
| Survival wind speed | 241.4 km/h |
| Wind load | 150 |
| Maximum operating distance | 1000 m |
| Mounting | Wall/Pole |
| Purpose | Outdoor |
| Type of clamp | U-bolt |
| Certificates | |
| Compliance certificates | RoHS, CE |
| Certification | CE, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Height | 800 mm |
| Diameter | 7 cm |
| Weight | 3 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Mounting brackets included | Yes |
| Bolts included | Yes |
| Logistics data | |
| UK Trade Tariff code | 85177100 |
| Country of origin | United Kingdom |
