Description

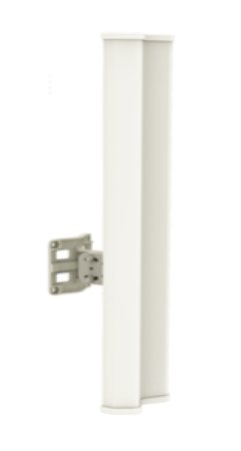

SilverNet SAN2417-90, 17 dBi, 2.3 - 2.7 GHz, 50 Ω, 90°, 8°, Sector antenna
The SIL SAN2417-90 is an outdoor sector antenna featuring a 90-degree horizontal beam width. It operates on the 2.4GHz band and is fully compatible with the SIL AP1200 multipoint receiver.
This antenna is equipped with two N-type female connectors.
For connection to one of our multipoint receivers, LMR400 cables are required. SilverNet provides these cables in lengths of 1, 2, 4, and 8 meters.
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL SAN 2417-90 |
| Our part no. | 4M30082 |
| Category | Networking › Wireless Access Points |
| Weight | 0 kg |
| Performance | |
| Frequency band | 2.3 - 2.7 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 90° |
| Vertical beam width | 8° |
| Antenna gain level (max) | 17 dBi |
| Features | |
| Antenna type | Sector antenna |
| Antenna connector type | N-type |
| Connector gender | Female |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.5 |
| Product colour | White |
| Housing material | Acrylonitrile butadiene styrene (ABS), Metal |
| Waterproof | Yes |
| Wind load | 150 |
| Mounting | Wall/Pole |
| Purpose | Outdoor |
| Front to back ratio | 25 dB |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, RoHS |
| Weight & dimensions | |
| Width | 133 mm |
| Depth | 57 mm |
| Height | 700 mm |
| Weight | 2.1 kg |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 760 mm |
| Package height | 68 mm |
| Package weight | 3.24 kg |
| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Mounting brackets included | Yes |
| Bolts included | Yes |
| Logistics data | |
| UK Trade Tariff code | 85177100 |
| Country of origin | United Kingdom |
| Other features | |
| Connector(s) | 2x N-type |
