Description
SilverNet DAN5829, 29 dBi, 4.9 - 7.1 GHz, 50 Ω, 5°, 5°, Parabolic antenna

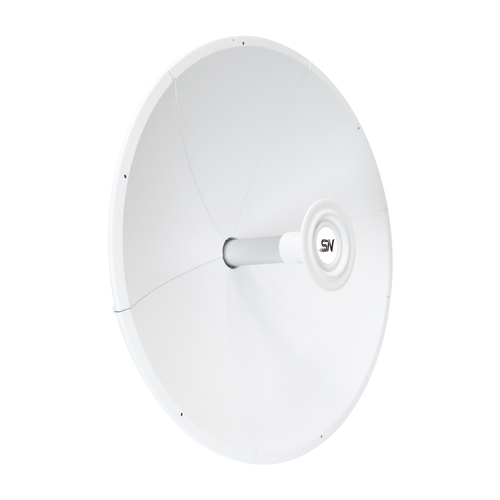

The SIL DAN5829 is an outdoor Dish antenna with a narrow beam width of 5 degrees. It operates on the 5GHz band and is compatible with Pro Range multipoint receivers. The Dish antenna is ideal for long distance transmission.
This antenna has two N-type female connectors.
To connect to our SIL-BASE, LMR400 cables are required. SilverNet provides these cables in lengths of 1, 2, 4, and 8 meters.
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL DAN 5829 |
| Our part no. | 4M30090 |
| Category | Networking › Wireless Access Points |
| Weight | 0 kg |
| Performance | |
| Frequency band | 4.9 - 7.1 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 5° |
| Vertical beam width | 5° |
| Antenna gain level (max) | 29 dBi |
| Features | |
| Antenna type | Parabolic antenna |
| Antenna connector type | 2x N-type |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | <2.0 |
| Product colour | White |
| Survival wind speed | 200 km/h |

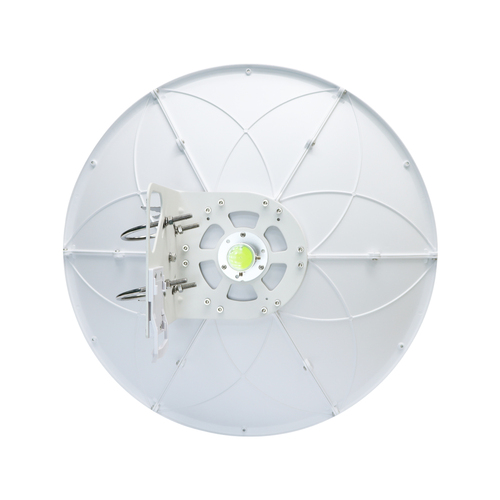

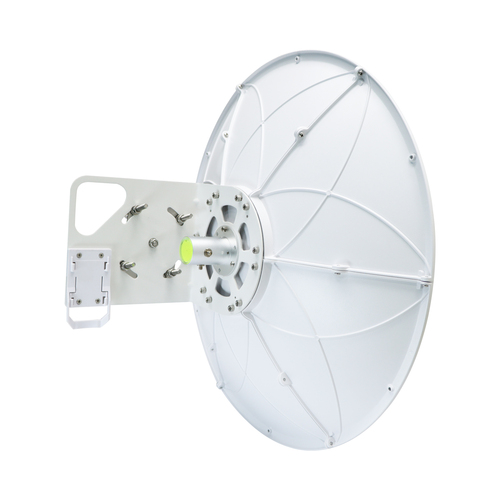

| Mounting | Wall/Pole |
| Purpose | Outdoor |
| Front to back ratio | 35 dB |
| Certificates | |
| Compliance certificates | RoHS, CE |
| Certification | CE, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Diameter | 60 cm |
| Weight | 6.5 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Mounting brackets included | Yes |
| Bolts included | Yes |
| Logistics data | |
| UK Trade Tariff code | 85177100 |
| Country of origin | United Kingdom |
