Description
SilverNet GAN5824, 24 dBi, 4.9 - 7.1 GHz, 50 Ω, 9°, 9°, Parabolic antenna

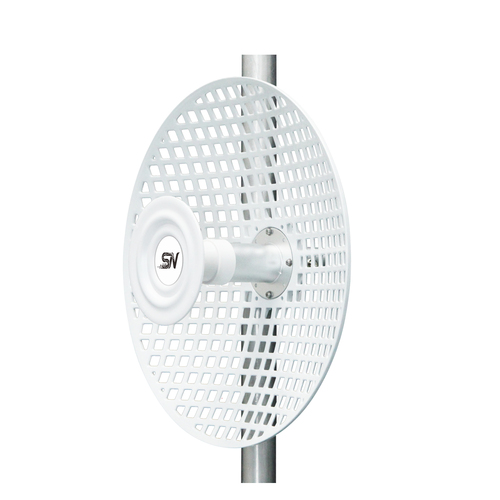

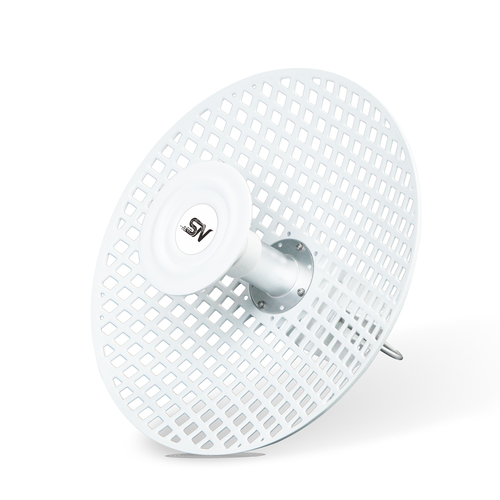

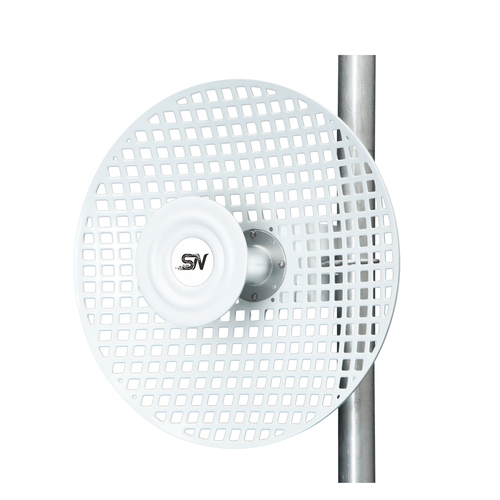

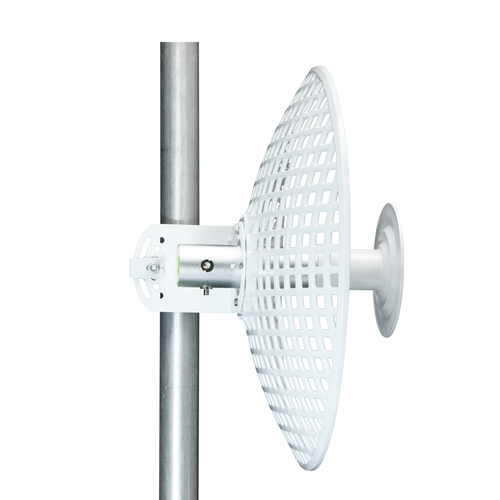

The SIL GAN5824 is an outdoor grid antenna featuring a narrow 9-degree beam width. It functions on the 5GHz band and is designed to work with Pro Range multipoint receivers. Its grid structure is particularly suited for coastal areas where wind is a significant factor.
This antenna is equipped with two N-type female connectors.
For connectivity with the SIL-BASE, LMR400 cables are necessary. SilverNet offers these cables in 1, 2, 4, and 8-meter lengths.
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL GAN 5824 |
| Our part no. | 4M30095 |
| Category | Networking › Wireless Access Points |
| Weight | 0 kg |
| Performance | |
| Frequency band | 4.9 - 7.1 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 9° |
| Vertical beam width | 9° |
| Antenna gain level (max) | 24 dBi |
| Features | |
| Antenna type | Parabolic antenna |
| Antenna connector type | 2x N-type |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | <2.0 |
| Product colour | White |
| Waterproof | Yes |
| Survival wind speed | 240 km/h |
| Wind load | 150 |
| Mounting | Wall/Pole |
| Purpose | Outdoor |
| Front to back ratio | 30 dB |
| Certificates | |
| Compliance certificates | RoHS, CE |
| Certification | CE, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Diameter | 40 cm |
| Weight | 2 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Mounting brackets included | Yes |
| Bolts included | Yes |
| Logistics data | |
| UK Trade Tariff code | 85177100 |
| Country of origin | United Kingdom |
