Description
SilverNet 120W 48V 2.5A INDUSTRIAL DIN RAIL POWER SUPPLY, Power supply, Black, Power, Over voltage, Overload, Short circuit, 456300 h, EN6100-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, EN55032 (CISPR32),...

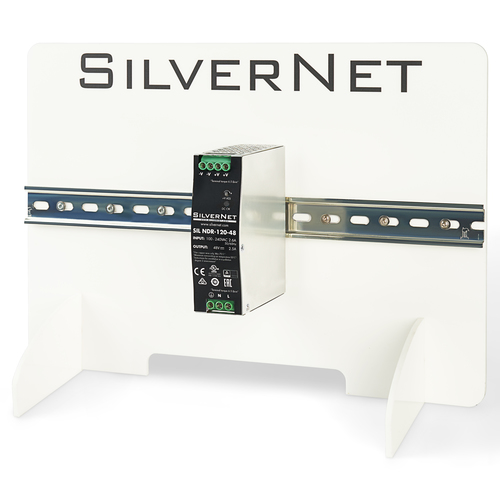

The SIL NDR-120-48 PSU is a slim 120W 48v 2.5A DIN rail power supply, adapted to be installed on TS-35/7.5 or TS35/15 mounting rails. The PSU is slim (40mm wide), which allows you to save space when fitting inside cabinets.
Ideal for use with the SilverNet Series 7 Industrial network switches.
The SIL NDR-120-48 is designed with metal housing that enhances the unit's power dissipation and has a working efficiency up to 90%, it can operate at temperatures between -20°C and 70°C and is equipped with short circuit, over load & over voltage protection.
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL NDR-120-48 |
| Our part no. | 4M30104 |
| EAN | 5060693980626 |
| Category | Computers & Servers › Power Supplies |
| Weight | 0.5 kg |
| Features | |
| Product type | Power supply |
| Product colour | Black |
| DIN rail mounting | Yes |
| LED indicators | Power |
| Power protection features | Over voltage, Overload, Short circuit |
| Mean time between failures (MTBF) | 456300 h |
| Network | |
| Compliance industry standards | EN6100-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, EN55032 (CISPR32), EN61204-3 Class B, EN61000-3-2, -3, EAC TP TC 020 |
| Power | |
| Total power | 120 W |
| AC input voltage | 100-240 V |
| AC input frequency | 47 - 63 Hz |
| Maximum current | 2.5 A |
| Inrush current | 35 A |
| DC voltage range | 48 - 55 V |
| DC output voltage | 48 V |
| Voltage tolerance | 1% |
| Ripple & noise | 150 mVpp |
| Certificates | |
| Certification | Heavy industry level, criteria A, EAC TP TC 020 Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25°C / 70% RH Withstand Voltage I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC UL508, TUV EN62368-q, EAC TP TC 004 approved;(meet EN60204-1) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 90 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width | 40 mm |
| Depth | 113.5 mm |
| Height | 125.2 mm |
| Weight | 600 g |
| Packaging data | |
| Package width | 59 mm |
| Package depth | 145 mm |
| Package height | 140 mm |
| Package weight | 580 g |
| Logistics data | |
| UK Trade Tariff code | 85044095 |
