Description

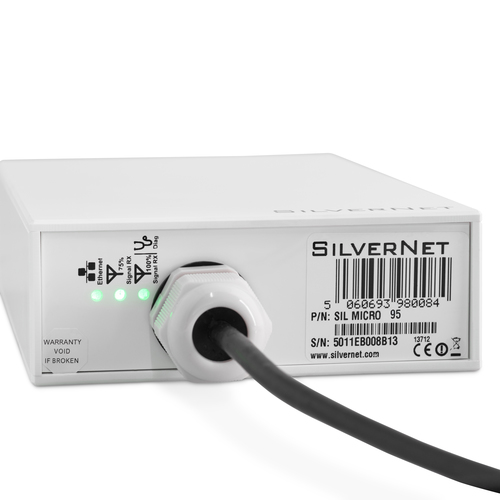

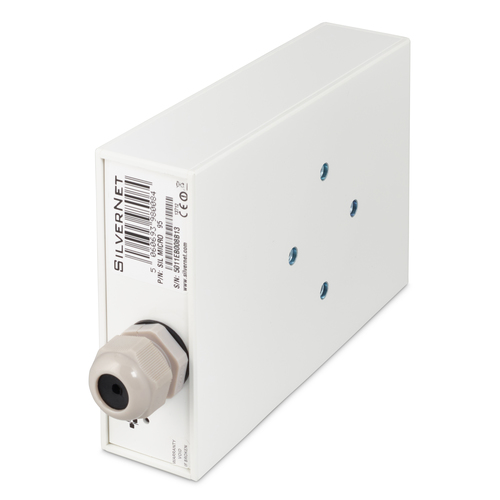

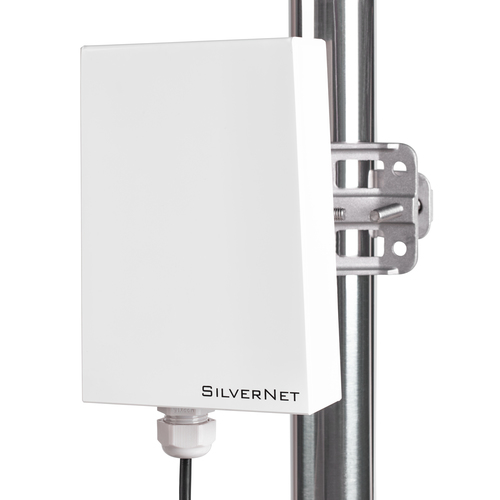

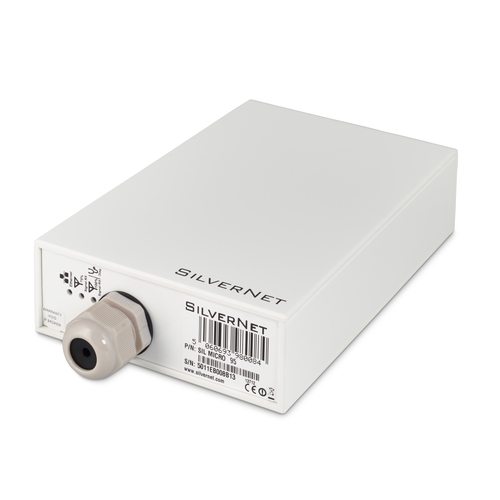

SilverNet SIL MICRO PCP, Network bridge, 100 Mbit/s, Wi-Fi, Ethernet LAN, Wall mountable, Black, White
Nominated for 'Security Product of the Year 2012', due to it's high MTBF and robust design, the MICRO has always been a great choice for harsh environments that need high reliability. The simplicity of installation and full integration into our Free NMS 'SilverView' make this the go-to product for professional CCTV and network installers.
Clients can quickly build up stable Point to Point or Point to MultiPoint outdoor wireless broadband access systems for "Last mile access" at low cost. The MICRO range is used in CCTV and data networks extensively where reliability and ease of installation is paramount.
The amazingly small form factor of the MICRO will benefit locations where the radio needs to be unobtrusive. (17.9 x 12 x 4.5 cm). Available in Standard White or Carbon Black to fit into street scenery. Other colours available on special order.
This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged.
The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines.
Specifications
| Brand | SILVERNET |
|---|---|
| Manufacturer part no. | SIL MICRO-PCP |
| Our part no. | 4M30136 |
| EAN | 5060693981760 |
| Category | Networking › Wireless Access Points |
| Weight | 3.1 kg |
| Data transmission | |
| Maximum data transfer rate | 100 Mbit/s |
| Maximum transfer distance | 2000 m |
| Supported data transfer rates | 100, 240, 500Mbps |
| Antenna | |
| Antenna design | Internal |
| Antenna gain level (max) | 14 dBi |
| Antennas quantity | 1 |
| Wireless LAN features | |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1300 Mbit/s |
| Frequency band | 5.1 - 5.8 GHz |
| Transmission gain | 0 - 14 dB |
| Signal strength | -40 dBm |
| Channels quantity | 25 channels |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, [email protected] |
| Output power (dBm) | 26 |
| Indoor range | 2000m |
| Outdoor range | 2000m |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af |
| Cabling technology | 10/100/1000Base-T(X) |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Static IP | Yes |
| Dynamic IP | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Security algorithms | 256-bit AES, 802.1x RADIUS, SNMP, SNMPv2 |
| MAC address filtering | Yes |
| Authentication method | WPA2 AES |
| Management features | |
| Management protocols | SNMP V2 |
| Web-based management | Yes |
| DHCP client | Yes |
| Features | |
| Product type | Network bridge |
| Product colour | Black, White |
| Remote control function | Yes |
| LED indicators | LAN, Signal strength |
| Automatic Transmit Power Control (ATPC) | Yes |
| Wall mountable | Yes |
| Reset button | Yes |
| International Protection (IP) code | IP66 |
| Surge protection | Yes |
| Quality of Service (QoS) support | Yes |
| Network Time Protocol (NTP) client | Yes |
| Mean time between failures (MTBF) | 60000 h |
| System requirements | |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Power | |
| Power source type | DC, PoE |
| AC input voltage | 100-240 V |
| Power supply | 15.4 W |
| DC input voltage | 24-48/48-56 V |
| Power consumption (typical) | 6 W |
| Power consumption (max) | 16 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 48 V |
| Power plug type | Type G |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | -4 - 158 °F |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 90 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Certificates | |
| Certification | CE, FCC |
| Weight & dimensions | |
| Width | 123 mm |
| Depth | 48 mm |
| Height | 170 mm |
| Weight | 500 g |
| Packaging content | |
| Packaging content | Complete radio link. Includes 2 x radios, 2 x PoE injector PSU's and 2 x Tilt and Swivel 3 Axis mounting brackets. |
| PoE+ Injector(s) | Yes |
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
| Antenna included | Yes |
| Quick installation guide | Yes |
| Packaging data | |
| Package width | 285 mm |
| Package depth | 320 mm |
| Package height | 115 mm |
| Package weight | 3.02 kg |
| Package type | Box |
| Quantity per pack | 2 pc(s) |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Country of origin | United Kingdom |
