Description
Lindy 50m USB 2.0 Cat.6 Extender, Network transmitter & receiver, 50 m, 480 Mbit/s, Cat5, Cat5e, Cat6, LG-8311, Black

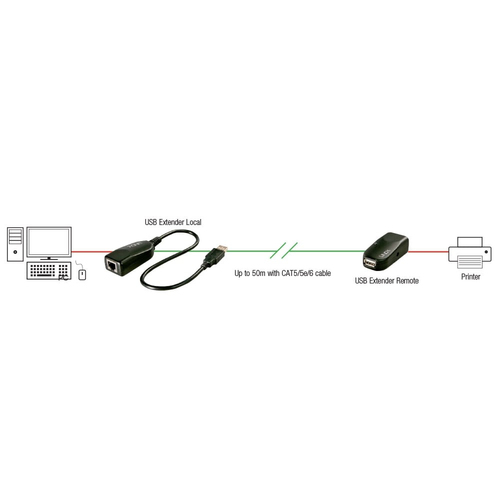

The Lindy 50m USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and host computer by up to 50m.
It consists of a local unit which connects to the computer and a remote unit that connects to the device.
Standard, low cost Cat.5e/6 network cable (not included) is then used to bridge the connection between the two units.For best performance and compatibility, we recommend the use of solid core patched cables.
The included power supply ensures secure and uninterrupted electricity supplies.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 42693 |
| Our part no. | 4R70023 |
| EAN | 4002888426930 |
| Category | Cables & Adapters › USB Cables & Adapters |
| Weight | 0.3 kg |
| Performance | |
| Type | Network transmitter & receiver |
| Maximum transfer distance | 50 m |
| Data transfer rate | 480 Mbit/s |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Chipset | LG-8311 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| USB 2.0 ports quantity | 1 |
| DC-in jack | Yes |
| Design | |
| Product colour | Black |
| Housing material | Plastic |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Power | |
| External power adapter | Yes |
| Output voltage | 5 V |
| Output current | 2.1 A |
| Power note | 3.5/1.35mm DC |
| Included power plug types | AU, EU, UK, US |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 30 mm |
| Depth | 60 mm |
| Height | 15 mm |
| Weight | 64 g |
| Cable length | 7.5 m |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package type | Box |
| Package width | 140 mm |
| Package depth | 130 mm |
| Package height | 85 mm |
| Package volume | 235 cm³ |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
