Description

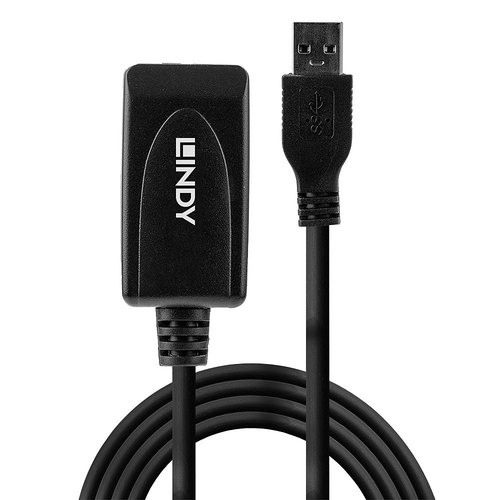

Lindy 5m USB 3.0 Active Extension, 5 m, USB A, USB A, USB 3.2 Gen 1 (3.1 Gen 1), 5 Gbit/s, Black

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 5m whilst continuing to support data transfer rates of up to 5Gbps.

With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together.

The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers.

It is certified by Google to provide a long distance active connection between the ASUS Chromebox and USB camera in a Google Hangouts Meet hardware installation, perfect for use in boardrooms and other video conferencing scenarios.Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications

BrandLINDY
Manufacturer part no.43155
Our part no.4R70033
EAN4002888431552
CategoryCables & Adapters › USB Cables & Adapters
Weight0.2 kg
Features
USB versionUSB 3.2 Gen 1 (3.1 Gen 1)
Connector 1USB A
Connector 2USB A
Connector 1 genderMale
Connector 2 genderFemale
Connector 1 form factorStraight
Connector 2 form factorStraight
AWG wire size28/24
Connector materialGold
Contact materialBrass
Connector contacts platingGold
Cable jacket materialPolyvinyl chloride (PVC)
Conductor materialTinned copper
Connector shieldingYes
Connector shield materialAluminium
Connector housing materialPlastic
Maximum data transfer rate5000 Mbit/s
Maximum data transfer rate5 Gbit/s
Cable typeRound cable
Product colourBlack
Transmission mediumTwisted pair
Nominal attenuation1.5dB/[email protected] 5.0dB/[email protected] 7.5dB/[email protected] 25dB/[email protected]
Weight & dimensions
Cable length5 m
Cable diameter5.5 mm
Weight220 g
Bend radius (min)5.5 cm
Connector 1 dimensions (WxDxH)16 x 48 x 6 mm
Connector 2 dimensions (WxDxH)24 x 46 x 12 mm
Packaging data
Package typeBlister
Package width237 mm
Package depth60 mm
Package height138 mm
Package weight289 g
Packaging content
Quantity per pack1 pc(s)
Operational conditions
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)0 - 70 °C
Certificates
CertificationCE, UKCA, FCC, RoHS, REACH
Logistics data
Harmonized System (HS) code84733080
