Description

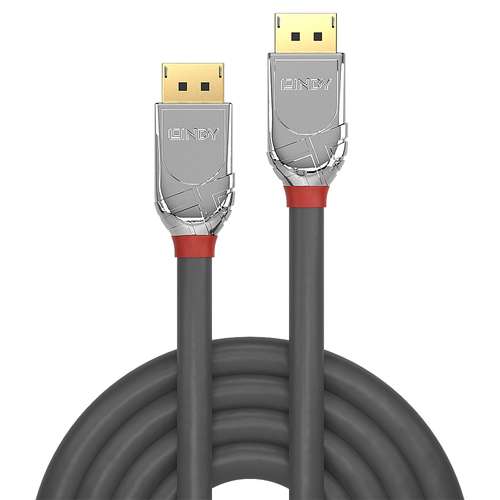

Lindy 2m DisplayPort 1.4 Cable, Cromo Line, 2 m, DisplayPort, DisplayPort, Male, Male, 7680 x 4320 pixels
From the Lines cable connectivity concept developed by Lindy, Cromo Line DisplayPort cables are high performance, designer connections that combine premium construction materials with striking connector architecture.
Cromo Line DisplayPort Cables feature triple shielded construction with 28AWG conductors for premium performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@120Hz 8bit, are supported. Cromo Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.
Cromo Line cables feature sleek chrome design ABS housing to complement the aesthetics of style focused commercial and home applications.
Cromo Line DisplayPort cables are available in lengths from 0.5m to 5m.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 36302 |
| Our part no. | 4R70068 |
| EAN | 4002888363020 |
| Category | Cables & Adapters › VGA & Video Adapters |
| Weight | 0.1 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 7680 x 4320 |
| Maximum refresh rate | 60 Hz |
| Cable length | 2 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Grey |
| Cable material | Tinned copper |
| Cable shielding | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| AWG wire size | 28 |
| Data transfer rate | 32.4 Gbit/s |
| Contact material | Phosphor copper |
| Connector material | Gold |
| Colour sampling | 4:2:2 |
| Cable type | Round cable |
| Nominal attenuation | 300kHz-825MHz 5dB,825MHz-2.475GHz 5dB,2.475GHz-4.125GHz 12dB,4.125GHz-5.1GHz 20dB |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Certificates | |
| Certification | RoHS, REACH, UL, |
| Weight & dimensions | |
| Cable diameter | 7.3 mm |
| Connector 1 dimensions (WxDxH) | 19.7 x 12 x 38.9 mm |
| Connector 2 dimensions (WxDxH) | 19.7 x 12 x 38.9 mm |
| Bend radius (min) | 7.3 cm |
| Packaging data | |
| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
