Description

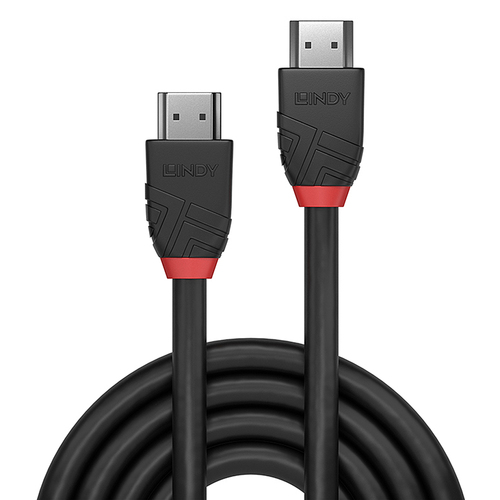

Lindy 1m High Speed HDMI Cable, Black Line, 1 m, HDMI Type A (Standard), HDMI Type A (Standard), 4096 x 2160 pixels, 18 Gbit/s, Black
From the lines cable connectivity concept developed by Lindy, Black Line High Speed HDMI cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line High Speed HDMI cables feature triple shielded construction with 30AWG copper coated steel conductors for premium performance and corrosion resistance. Nickel connectors and gold flashed contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Black Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 15m.
Black Line HDMI cables are available in lengths from 0.5m to 15m.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 36471 |
| Our part no. | 4R70100 |
| EAN | 4002888364713 |
| Category | Cables & Adapters › HDMI Cables & Extenders |
| Weight | 0 kg |
| Features | |
| Cable length | 1 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| HDMI version | 2.0 |
| Supported graphics resolutions | 4096 x 2160 |
| Audio Return Channel (ARC) | Yes |
| HDMI Ethernet channel | Yes |
| Data transfer rate | 18 Gbit/s |
| Maximum resolution | 4096 x 2160 pixels |
| AWG wire size | 30 |
| Contact material | Phosphor bronze |
| Connector contacts plating | Gold |
| Connector housing material | Polyvinyl chloride (PVC) |
| Connector material | Nickel |
| Cable material | Copper |
| Cable type | Round cable |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Shield material | Aluminium |
| Bend radius (min) | 6 cm |
| Colour depth | 8 bit |
| Colour sampling | 4:4:4 |
| Nominal attenuation | 300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 80 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Certificates | |
| Certification | RoHS, REACH, UL |
| Weight & dimensions | |
| Cable diameter | 6 mm |
| Connector 1 dimensions (WxDxH) | 19.2 x 34.1 x 10.6 mm |
| Connector 2 dimensions (WxDxH) | 19.2 x 34.1 x 10.6 mm |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
