Description

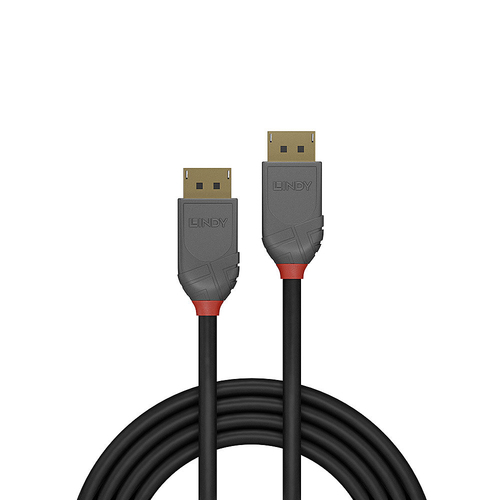

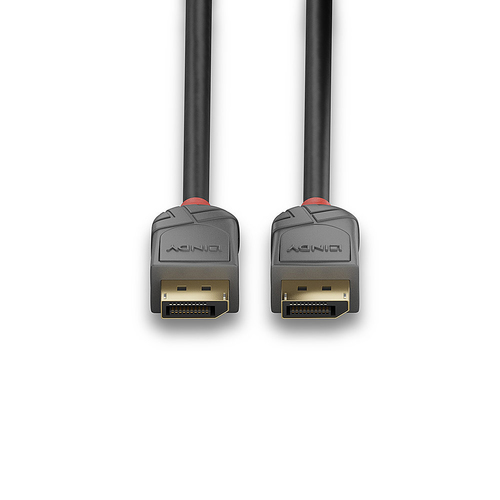

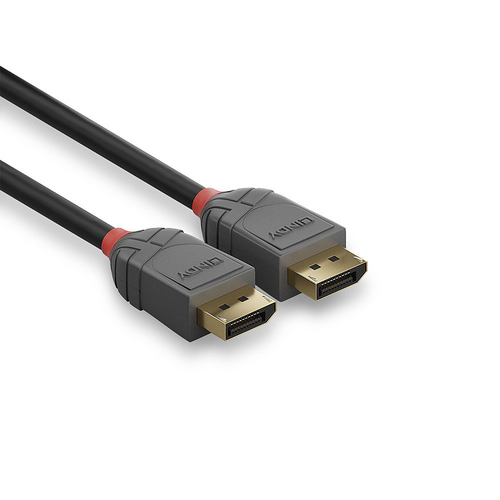

Lindy 1m DisplayPort 1.4 Cable, Anthra Line, 1 m, DisplayPort, DisplayPort, Male, Male, 7680 x 4320 pixels
From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@144Hz 4:2:2 10bit and HDCP are supported. DisplayPort 1.4 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.
Anthra Line DisplayPort cables are available in lengths from 0.5m to 5m.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 36481 |
| Our part no. | 4R70103 |
| EAN | 4002888364812 |
| Category | Cables & Adapters › VGA & Video Adapters |
| Weight | 0 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 4096 x 2160, 7680 x 4320 |
| Maximum refresh rate | 60 Hz |
| Cable length | 1 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black, Grey |
| Cable material | Tinned copper |
| Cable shielding | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| AWG wire size | 28 |
| Data transfer rate | 32.4 Gbit/s |
| Contact material | Phosphor bronze |
| Connector material | Gold |
| Plug and Play | Yes |
| Colour sampling | 4:2:2 |
| Cable type | Round cable |
| Nominal attenuation | 100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Certificates | |
| Certification | RoHS, REACH, UL |
| Weight & dimensions | |
| Cable diameter | 7.3 mm |
| Connector 1 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
| Connector 2 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
| Bend radius (min) | 5.84 cm |
| Packaging data | |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
