Description

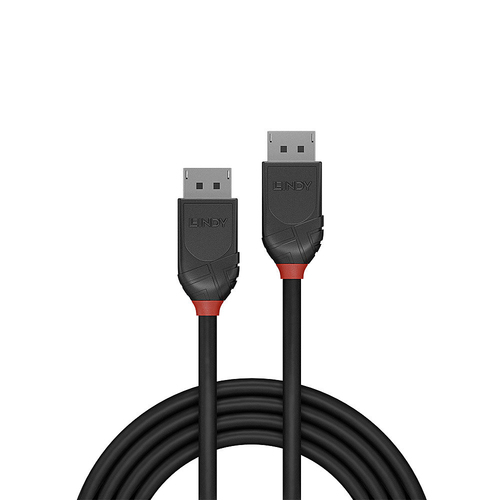

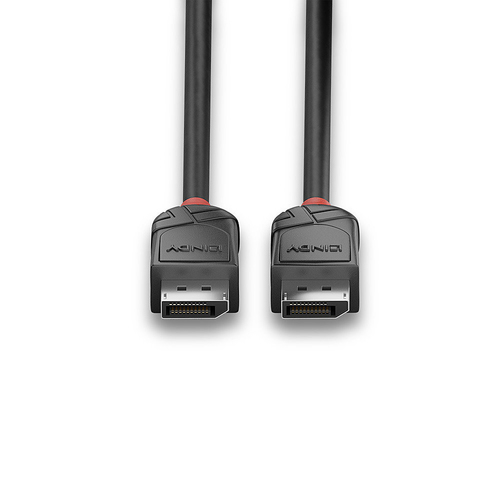

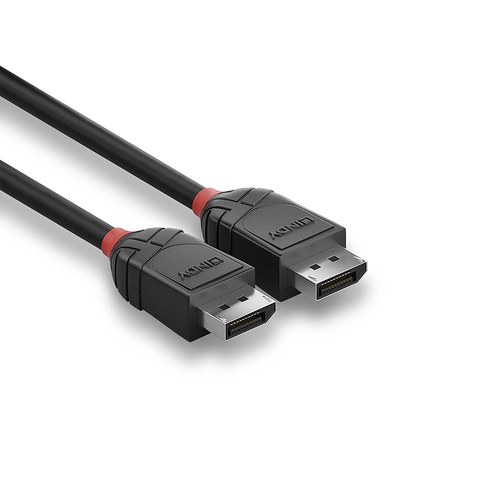

Lindy 2m DisplayPort 1.2 Cable, Black Line, 2 m, DisplayPort, DisplayPort, Male, Male, 4096 x 2160 pixels
From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby® True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.
Black Line DisplayPort cables are available in lengths from 0.5m to 3m.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 36492 |
| Our part no. | 4R70108 |
| EAN | 4002888364928 |
| Category | Cables & Adapters › VGA & Video Adapters |
| Weight | 0.1 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 1.2 |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| Maximum refresh rate | 60 Hz |
| Cable length | 2 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Cable material | Copper |
| Cable shielding | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| AWG wire size | 30 |
| Data transfer rate | 21.6 Gbit/s |
| Contact material | Phosphor bronze |
| Connector material | Nickel |
| Plug and Play | Yes |
| Colour sampling | 4:4:4 |
| Cable type | Round cable |
| Nominal attenuation | 300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Certificates | |
| Certification | RoHS, REACH, UL |
| Weight & dimensions | |
| Cable diameter | 6 mm |
| Connector 1 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
| Connector 2 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
| Bend radius (min) | 4.8 cm |
| Packaging data | |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
