Description

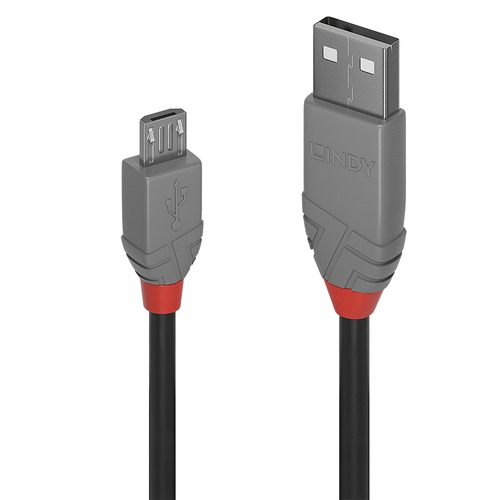

Lindy 5m USB 2.0 Type A to Micro-B Cable, Anthra Line, 5 m, USB A, Micro-USB B, USB 2.0, 0.48 Gbit/s, Black, Grey
From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to Micro-B cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain signal integrity and reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
Anthra Line USB 2.0 Type A to Micro-B cables are available in lengths from 0.2m to 5m.
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 36735 |
| Our part no. | 4R70144 |
| EAN | 4002888367356 |
| Category | Cables & Adapters › USB Cables & Adapters |
| Weight | 0.1 kg |
| Features | |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | Micro-USB B |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 28 |
| Connector material | Nickel |
| Contact material | Copper |
| Connector contacts plating | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Tinned copper |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Connector housing material | Polyvinyl chloride (PVC) |
| Maximum data transfer rate | 480 Mbit/s |
| Maximum data transfer rate | 0.48 Gbit/s |
| Cable type | Round cable |
| Product colour | Black, Grey |
| Nominal attenuation | 5.8db/km |
| Weight & dimensions | |
| Cable length | 5 m |
| Cable diameter | 3.5 mm |
| Bend radius (min) | 1.6 cm |
| Connector 1 dimensions (WxDxH) | 15.5 x 35 x 7.8 mm |
| Connector 2 dimensions (WxDxH) | 10 x 24 x 7.6 mm |
| Packaging data | |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Certificates | |
| Certification | RoHS, REACH, UL |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
