Description

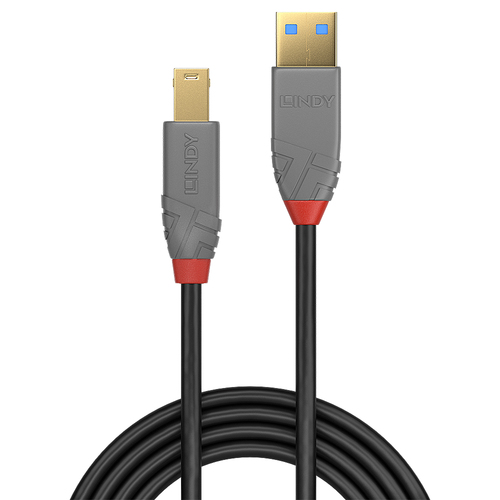

Lindy 2m USB 3.2 Type A to B Cable, 5Gbps, Anthra Line, 2 m, USB A, USB B, USB 3.2 Gen 1 (3.1 Gen 1), 5 Gbit/s, Black, Grey

The Anthra Line USB 3.2 Type A to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.

Anthra Line USB 3.2 Type A to B cables are available in the following lengths: 0.5m, 1m, 2m, 3m and 5m.

Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Specifications

BrandLINDY
Manufacturer part no.36742
Our part no.4R70146
EAN4002888367424
CategoryCables & Adapters › USB Cables & Adapters
Weight0.1 kg
Features
USB versionUSB 3.2 Gen 1 (3.1 Gen 1)
Connector 1USB A
Connector 2USB B
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
AWG wire size24/28/30
Connector materialGold
Contact materialCopper
Connector contacts platingGold
Magnetically shieldedYes
Cable jacket materialPolyvinyl chloride (PVC)
Conductor materialTinned copper
Connector shieldingYes
Connector shield materialAluminium
Connector housing materialPolyvinyl chloride (PVC)
Maximum data transfer rate5000 Mbit/s
Maximum data transfer rate5 Gbit/s
Cable typeRound cable
Product colourBlack, Grey
Nominal attenuation0.5-5m: 0.5MHz-7.5GHz
Weight & dimensions
Cable length2 m
Cable diameter5.5 mm
Bend radius (min)4.8 cm
Connector 1 dimensions (WxDxH)15.5 x 35 x 7.8 mm
Connector 2 dimensions (WxDxH)12.2 x 35 x 13.5 mm
Packaging data
Package typePolybag
Packaging content
Quantity per pack1 pc(s)
Operational conditions
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)0 - 60 °C
Certificates
CertificationRoHS, REACH, UL
Logistics data
Harmonized System (HS) code84733080
