Description

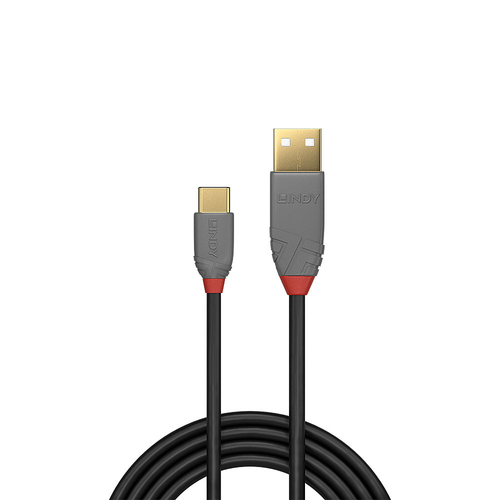

Lindy 2m USB 2.0 Type A to C Cable, Anthra Line, 2 m, USB A, USB C, USB 2.0, 0.48 Gbit/s, Black, Grey
Professional choice USB 2.0 Type A to C cable for commercial and high performance AV and IT installations Supports data transfer speeds up to 480Mbps Robust PVC housing, gold plated connectors and contacts Double shielded cable, corrosion resistant tinned copper conductors USB 2.0, 480Mbps; 10 year warranty
From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to C cables are the professional choice for high performance connections in commercial AV and IT installations.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain signal integrity and reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
Anthra Line USB 2.0 Type A to C cables are available in the following lengths: 0.5m, 1m, 2m and 3m
Specifications
| Brand | LINDY |
|---|---|
| Manufacturer part no. | 36887 |
| Our part no. | 4R70159 |
| EAN | 4002888368872 |
| Category | Cables & Adapters › USB Cables & Adapters |
| Weight | 0 kg |
| Features | |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB C |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 28 |
| Connector material | Gold |
| Contact material | Phosphor bronze |
| Connector contacts plating | Gold |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Tinned copper |
| Connector shielding | Yes |
| Connector shield material | Copper |
| Connector housing material | Polyvinyl chloride (PVC) |
| Maximum data transfer rate | 480 Mbit/s |
| Maximum data transfer rate | 0.48 Gbit/s |
| Cable type | Round cable |
| Plug and Play | Yes |
| Product colour | Black, Grey |
| Nominal attenuation | 0.5-3m: 0.5Mhz €“ 400Mhz 5.8db |
| Weight & dimensions | |
| Cable length | 2 m |
| Cable diameter | 3.5 mm |
| Bend radius (min) | 3.5 cm |
| Connector 1 dimensions (WxDxH) | 11 x 25.5 x 7.3 mm |
| Connector 2 dimensions (WxDxH) | 15.5 x 35.1 x 7.8 mm |
| Packaging data | |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Certificates | |
| Certification | RoHS, REACH, UL |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
