Description

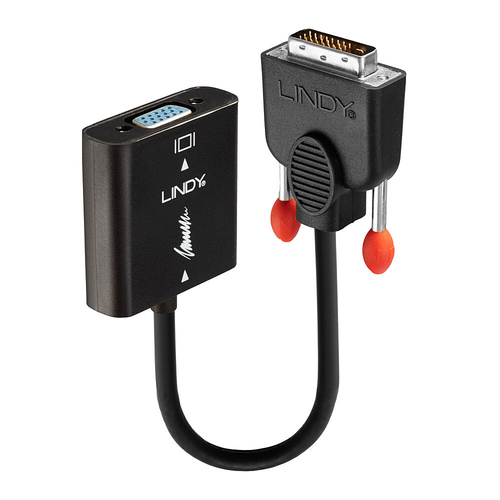

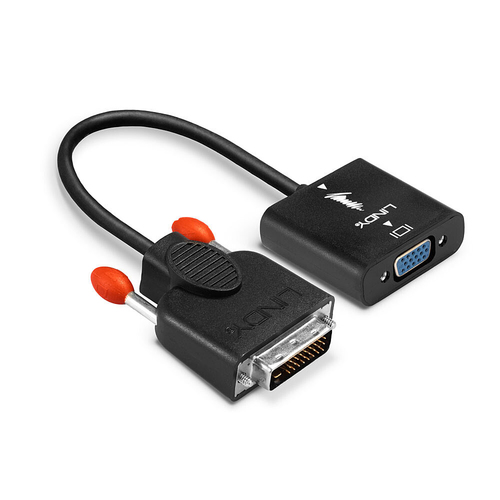

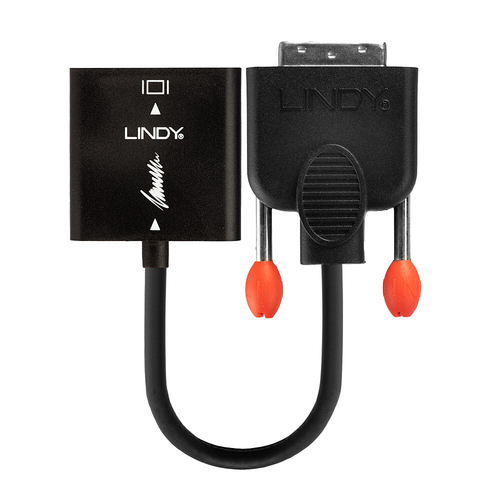

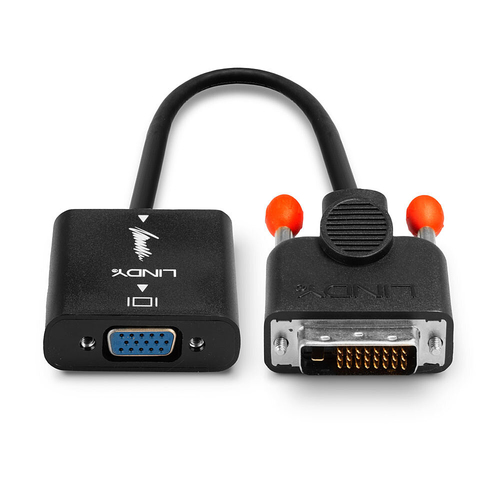

Lindy DVI-D to VGA Converter, 0.1 m, DVI-D, VGA (D-Sub), Male, Female, Straight
The Lindy DVI to VGA converter converts signals from a DVI-D equipped source into a VGA signal. It supports resolutions up to 1080p and 1920x1200 for VGA displays. This allows the connection of DVI capable devices, such as PC's, notebooks and ultrabooks, to an older VGA display or projector.
The converter can also be used to add another display to extend the available desktop workspace. It is also ideally suited for travelling due to its compact, lightweight form factor and convenient plug and play installation.
Specifications
| Brand | LINDY ELECTRONICS |
|---|---|
| Manufacturer part no. | 38189 |
| Our part no. | 4R70189 |
| EAN | 4002888381895 |
| Category | Cables & Adapters › VGA & Video Adapters |
| Weight | 0 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 0.1 m |
| Connector 1 | DVI-D |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| HDCP | No |
| Dual Link DVI | No |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 1080p |
| Data transfer rate | 4.95 Gbit/s |
| Bend radius (min) | 5.5 cm |
| Product colour | Black |
| Chipset | CH7101 |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector housing material | Polyvinyl chloride (PVC) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Weight & dimensions | |
| Cable diameter | 5.5 mm |
| Connector 1 dimensions (WxDxH) | 40 x 52.25 x 16.5 mm |
| Connector 2 dimensions (WxDxH) | 44 x 45 x 15 mm |
| Weight | 62 g |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 160 mm |
| Package height | 20 mm |
| Package weight | 77 g |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
