Description

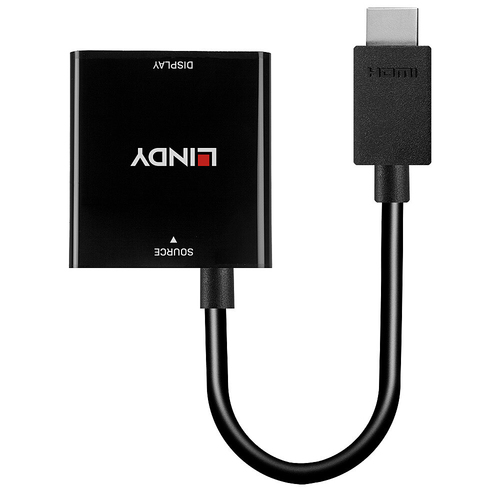

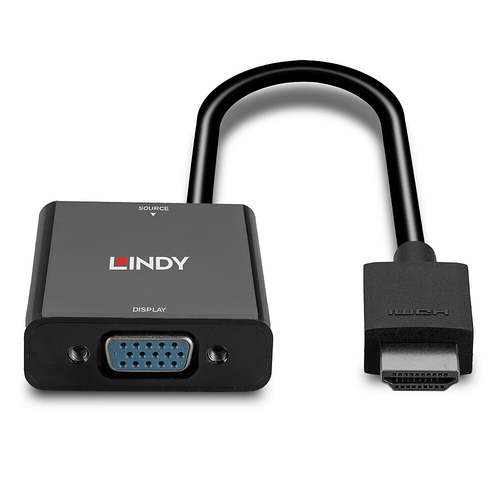

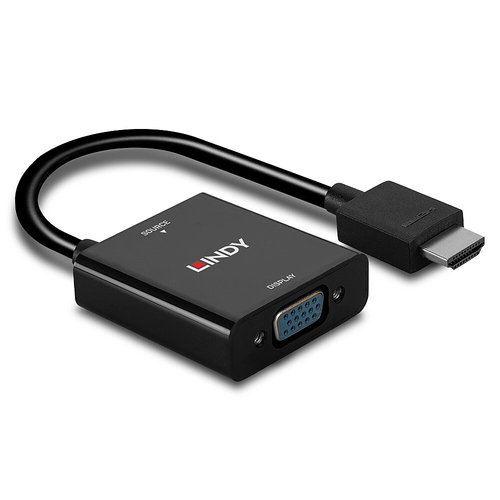

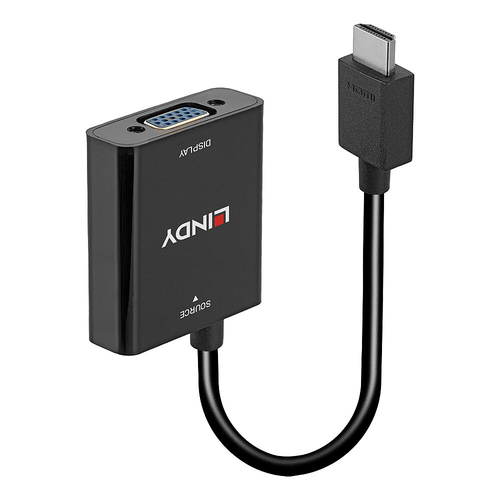

Lindy HDMI to VGA Converter, 0.1 m, HDMI Type A (Standard), VGA (D-Sub), Male, Female, Straight
The Lindy HDMI 1.3 to VGA converter converts signals from an HDMI equipped source into an analogue VGA signal. It supports resolutions up to 1080p and 1920x1200 for PC VGA displays. This allows the connection of modern HDMI capable devices, such as PC's, notebooks and ultrabooks, to an older VGA display or projector.
The converter can also be used to add another display to extend the available desktop workspace. It is also ideally suited for travelling due to its compact, lightweight form factor and convenient plug and play installation.
Specifications
| Brand | LINDY ELECTRONICS |
|---|---|
| Manufacturer part no. | 38291 |
| Our part no. | 4R70192 |
| EAN | 4002888382915 |
| Category | Cables & Adapters › HDMI Cables & Extenders |
| Weight | 0 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 0.1 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| HDMI version | 1.3 |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 1080p |
| Data transfer rate | 4.95 Gbit/s |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Chipset | Algoltek AG6200A |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| Colour depth | 12 bit |
| Plug and Play | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Weight & dimensions | |
| Cable diameter | 4.8 mm |
| Connector 1 dimensions (WxDxH) | 37 x 42 x 14.5 mm |
| Connector 2 dimensions (WxDxH) | 21 x 17.4 x 9.6 mm |
| Weight | 27 g |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 20 mm |
| Package height | 160 mm |
| Package weight | 37 g |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
