Description

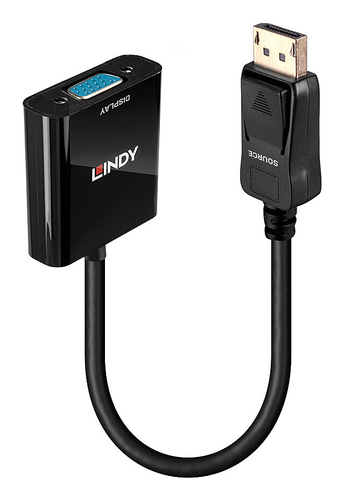

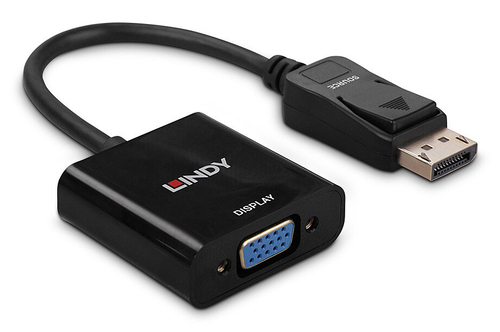

Lindy DisplayPort 1.2 to VGA Active Converter, 0.15 m, VGA (D-Sub), DisplayPort, Male, Female, Straight

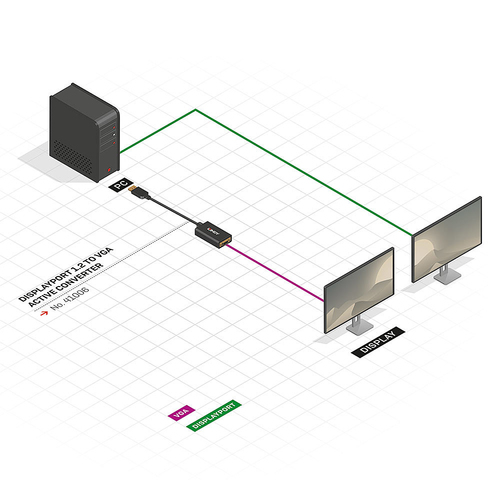

The Lindy DisplayPort 1.2 to VGA Converter is ideal for connecting a DisplayPort equipped source such as a PC or laptop to a VGA monitor. It supports high definition video resolutions up to 1920x1080@60Hz. Active conversion ensures compatibility with various graphics cards including AMD Eyefinity, NVIDIA surround and Intel Collage.
The converter can also be used to add another display to extend the available desktop workspace and increase productivity. Internal copper shielding provides enhanced reliability and compatibility. The converter is also ideally suited for travelling due to its compact, lightweight form factor and convenient Plug and Play installation.
Specifications
| Brand | LINDY ELECTRONICS |
|---|---|
| Manufacturer part no. | 41006 |
| Our part no. | 4R70195 |
| EAN | 4002888410069 |
| Category | Cables & Adapters › VGA & Video Adapters |
| Weight | 0 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Cable length | 0.15 m |
| Connector 1 | VGA (D-Sub) |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| DisplayPort version | 1.2 |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Data transfer rate | 10.8 Gbit/s |
| Maximum refresh rate | 60 Hz |
| Bend radius (min) | 7 cm |
| Product colour | Black |
| Chipset | ANX9833 |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector housing material | Thermoplastic elastomer (TPE) |
| Plug and Play | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Weight & dimensions | |
| Cable diameter | 6.5 mm |
| Connector 1 dimensions (WxDxH) | 38 x 61 x 17 mm |
| Connector 2 dimensions (WxDxH) | 20 x 36 x 11 mm |
| Weight | 45 g |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 20 mm |
| Package height | 160 mm |
| Package weight | 49 g |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
