Description

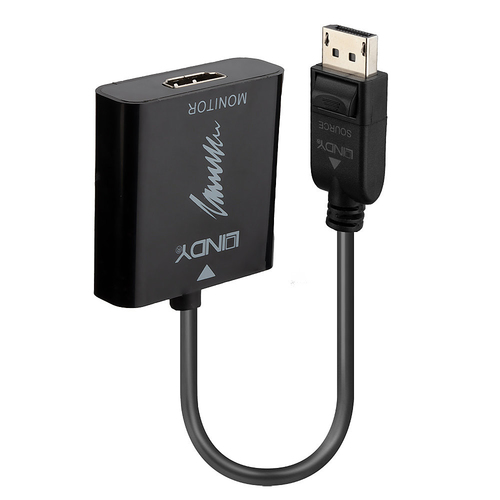

Lindy DisplayPort 1.2 to HDMI 2.0 18G Active Converter, 1.5 m, DisplayPort, HDMI Type A (Standard), Male, Female, Straight

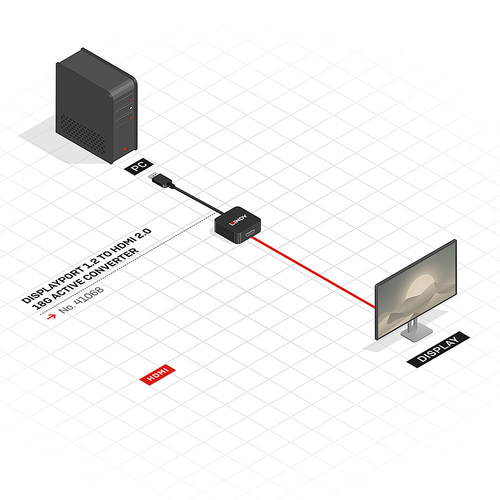

The Lindy DisplayPort to HDMI Converter is a high performance solution that allows a DisplayPort source device to be connected to a HDMI display or projector. It supports full 4K Ultra HD resolutions up to 3840x2160@60Hz 4:4:4 8bit and HDMI 2.0 with up to 18Gbps bandwidth, making it the ideal tool for high-resolution tasks like editing 4K videos.
HDCP 2.2 ensures issue-free playback of a variety of 4K Ultra HD movies, TV shows and other 4K content as well as existing Full HD signals.

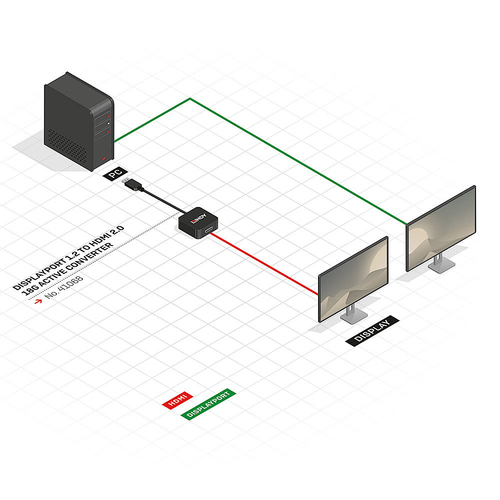

Active conversion guarantees compatibility with various graphics cards including AMD Eyefinity, NVIDIA surround and Intel Collage, great for an immersive gaming setup or a productive multi-screen working experience.
Specifications
| Brand | LINDY ELECTRONICS |
|---|---|
| Manufacturer part no. | 41068 |
| Our part no. | 4R70201 |
| EAN | 4002888410687 |
| Category | Cables & Adapters › HDMI Cables & Extenders |
| Weight | 0 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Cable length | 1.5 m |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| HDMI version | 2.0a |
| HDCP | Yes |
| HDCP version | 2.2 |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2160 pixels |
| Supported video modes | 2160p |
| Data transfer rate | 18 Gbit/s |
| Bend radius (min) | 5.5 cm |
| Product colour | Black |
| Chipset | PS176 |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector housing material | Thermoplastic elastomer (TPE) |
| Colour depth | 8 bit |
| Colour sampling | 4:4:4 |
| Converter type | Active video converter |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Weight & dimensions | |
| Cable diameter | 5 mm |
| Connector 1 dimensions (WxDxH) | 31.5 x 20 x 9 mm |
| Connector 2 dimensions (WxDxH) | 45 x 45 x 15 mm |
| Weight | 20 g |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 160 mm |
| Package height | 20 mm |
| Package weight | 45 g |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
