Description

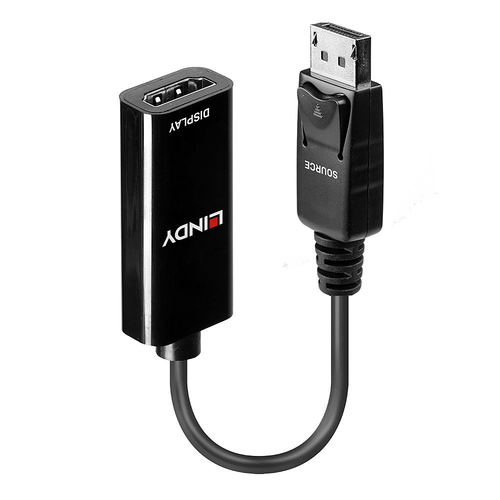

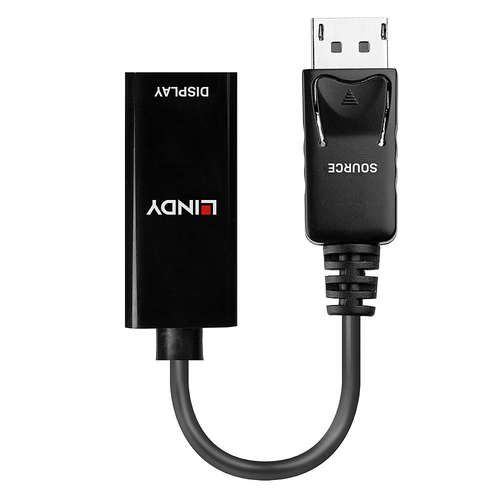

Lindy DisplayPort 1.2 to HDMI 1.4 Converter, 0.15 m, DisplayPort, HDMI, Male, Female, Straight
The Lindy DisplayPort 1.2 to HDMI Converter is ideal for connecting a DisplayPort equipped source such as a PC or laptop to an HDMI monitor or TV. It supports resolutions up to 4K 3840x2160@30Hz and allows audio pass-through if supported by the video source.
The converter can also be used to add another display to extend the available desktop workspace and increase productivity. It is also ideally suited for travelling due to its compact, lightweight form factor and convenient Plug and Play installation.
This Converter requires the source or graphics card to support DP++ to provide dual-mode signals.
Specifications
| Brand | LINDY ELECTRONICS |
|---|---|
| Manufacturer part no. | 41718 |
| Our part no. | 4R70319 |
| EAN | 4002888417181 |
| Category | Cables & Adapters › HDMI Cables & Extenders |
| Weight | 0 kg |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 0.15 m |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| HDMI version | 1.4 |
| HDCP | Yes |
| HDCP version | 1.4 |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 3840 x 2160 |
| Data transfer rate | 10.2 Gbit/s |
| Bend radius (min) | 6 cm |
| Product colour | Black |
| Chipset | PS8402A |
| Jacket material | Polyvinyl chloride (PVC) |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| Converter type | Passive video converter |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 80 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Weight & dimensions | |
| Cable diameter | 5 mm |
| Connector 1 dimensions (WxDxH) | 20.8 x 51 x 11.5 mm |
| Connector 2 dimensions (WxDxH) | 20.1 x 44.5 x 9 mm |
| Weight | 30 g |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 20 mm |
| Package height | 160 mm |
| Package weight | 38 g |
| Package type | Polybag |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
